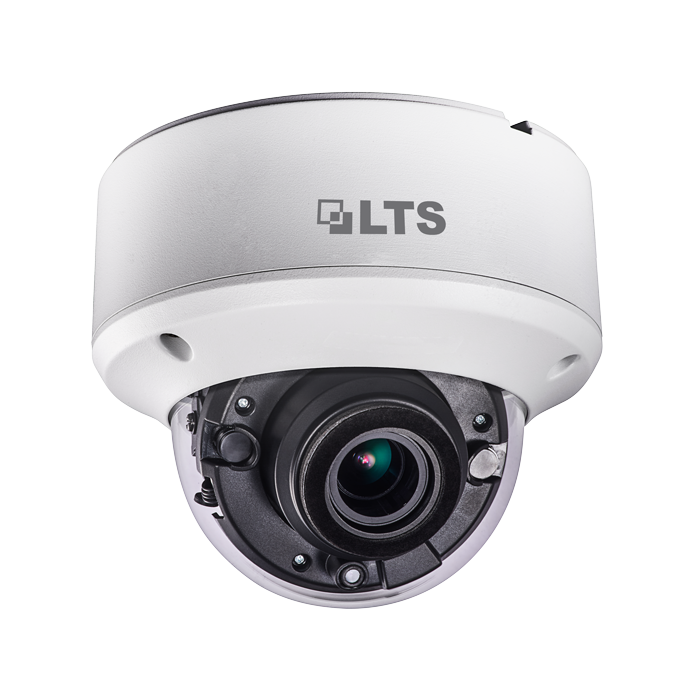

Platinum Starlight HD-TVI Dome Camera, 2.1MP

Be the first to review this product

Call for Price

Out of stock

SKU

CMHD3523DWE-Z

Out of Stock

2.1MP, Starlight, 2.8-12mm, Auto Focus, 1920x1080@30fps, 0.005 Lux@F2.0, IP67, 2 Matrix IR 2.0, UTC, IK8 Vandal-Proof Dome, 3-Axis, Smart IR, DC 12V, AC 24V

High Definition Dome 2.1MP HD-TVI Camera
2.8-12mm Varifocal Motorized Lens
Auto Focus
1920x1080@30fps
0.005 Lux@F2.0
2 Matrix IR 2.0 LED up to 131ft
UTC Control to OSD Menu
IK8 Vandal-Proof Dome
Smart IR
3-Axis Easy Installation
IP67
DC 12V, AC 24V
CVBS Output

Show more Show less

Details

High Definition Dome 2.1MP HD-TVI Camera
2.8-12mm Varifocal Motorized Lens
Auto Focus
1920x1080@30fps
0.005 Lux@F2.0
2 Matrix IR 2.0 LED up to 131ft
UTC Control to OSD Menu
IK8 Vandal-Proof Dome
Smart IR
3-Axis Easy Installation
IP67
DC 12V, AC 24V
CVBS Output

Specs

More Information

Specifications

Camera
Image Sensor	1/2.7" CMOS
Signal System	NTSC/PAL
Effective Pixels	1928(H)*1088(V)
Min. Illumination	0.01 Lux, 0 Lux with IR
Shutter Speed	1/30 (1/25)s to 1/50,000s
Lens	2.8-12mm Motorized Varifocal Lens Angle of View: 35.1° -114.5°
Day & Night	ICR
Synchronization	Internal
Video Frame Rate	1080p@30fps/ 1080p@25fps
HD Video Output/span>	1 Analog HD Output
S/N Ratio	More than 62dB
Menu
AGC	Support
D/N Mode	Color/BW/Smart
White Balance	ATW/MWB
Function	True WDR, DNR, Mirror, SMART IR
General
Working Temperature/ Humidity	-40 °F - 140 °F (-40 °C - 60° C) Humidity 90% or less (non-condensing)
Power Supply	DC 12V, AC 24V
Power Consumption	Max 6.5W
Weather Proof Ratings	IP66
IR Range	Up to 131ft(40m)
Impact Protection	IK10
Dimension	5.7” × 4.9” (145.2×124.1mm)
Weight	3.6lb (1600g)
