Platinum Starlight HD-TVI Dome Camera, 2.1MP Previous Platinum Starlight HD-TVI Dome Camera, 2.1MP
main product photo

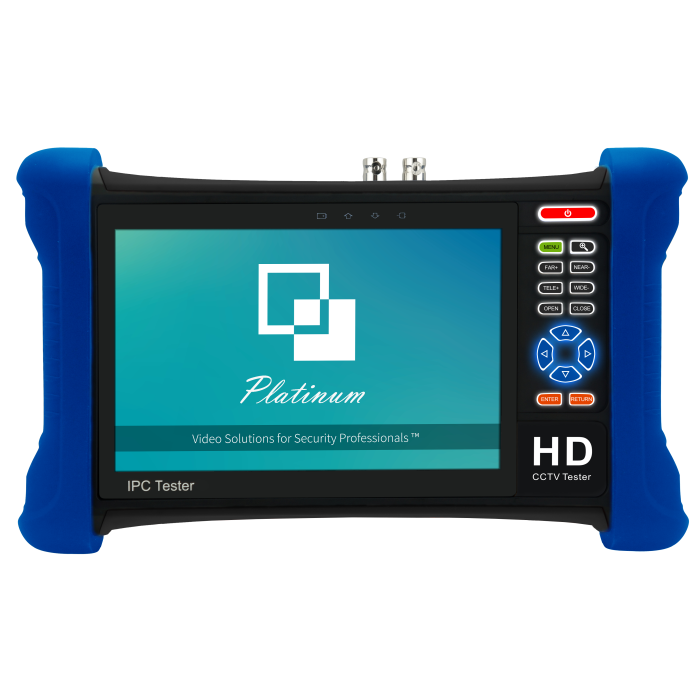

7 inch Multi-Purpose Camera Tester

Be the first to review this product
Call for Price
Out of stock
SKU
LTA-X78M
In Stock
Show more Show less
Wish List Compare
  • Support 8MP IP, 5MP TVI, 4MP CVI, 4MP AHD and Analog camera test
  • 7 inch retina touch screen, 1920×1200 resolution
  • H.265/H.264, 4K video display via mainstream
  • HDMI input/output, support 1080P
  • 5-1 Multi-purpose Camera Tester
  • Built in WIFI, create WIFI hotspot
More Information
Specifications
Parameter
Display 7 inch IPS touch screen , resolution 19200 x 1200
Network port 10/ 100 / 1000M auto adapt, RJ45
WIFI Built in WIFI, speeds150M, display wireless camera image
IP camera type LTS,ONVIF, ONVIF PTZ
Camera Input 8MP IP camera, 5MP TVI camera, 4MP CVI camera, 4MP AHD camera
Rapid ONVIF Search camera quickly, auto log in and display image from the camera, activate LTS camera
TVI/CVI/AHD test
TVI video signal test 1 channel TVI input(BNC interface), support resolution:720p 25,30,50,60fps/ 1080p 25,30fps, 5MP TVI
CVI video signal test 1 channel CVI input(BNC interface), support resolution:720p 25,30,50,60fps/ 1080p 25,30fps, 4MP CVI
AHD video signal test 1 channel AHD input(BNC interface), support resolution:720p 25,30fps / 1080p 25,30fps, 4MP AHD
Analog video test 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt)
Zoom Image 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
HDMI output 1 channel HDMI output, supports up to 1080P
12V/2Apower output Output DC 12V/2A power out , supply temporarily power for the camera
5V/2A power output USB 5V 2A power output, as a power bank
PoE power output  48V PoE power output, Max power 24W
Audio test 1 channel audio signal input and 1 channel audio signal output to connect headphones
Tester Play screen projection: tester, android version mobile phone and PC display at the same time
Color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
UTP Cable tester Test UTP cable connection status and display on the screen. Read the number on the screen
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
Network test Trace route, Link monitor , DHCP server, port flashing , Ping test
PoE Test Measurement POE switch or PSE power supply voltage and cable connection status
General
External power supply DC 12V 2A
Battery Built-in 7.4V Lithium polymer battery, 5000mAh
Rechargeable After charging 6~7 hours, normal working time 10 hours
Operation setting Retina touch screen, OSD menu, select your desired language
Auto Off 1-30 (mins)
Working Temperature -10 °C ~ +50 °C(14°F - 122°F)
Working Humidity 30%-90%
Dimension 255x160x46mm(10.0 x 6.3 x 1.8inch)
Weight 0.95Kg(2.09Ib)
SKU LTA-X78M
HC-2EB-F28&36-SAL.pdf (1.33 MB)
Spec Sheet (5.49 MB)
