Platinum 8-Channel Professional Plus Level 4K NVR Previous Platinum 8-Channel Professional Plus Level 4K NVR
main product photo

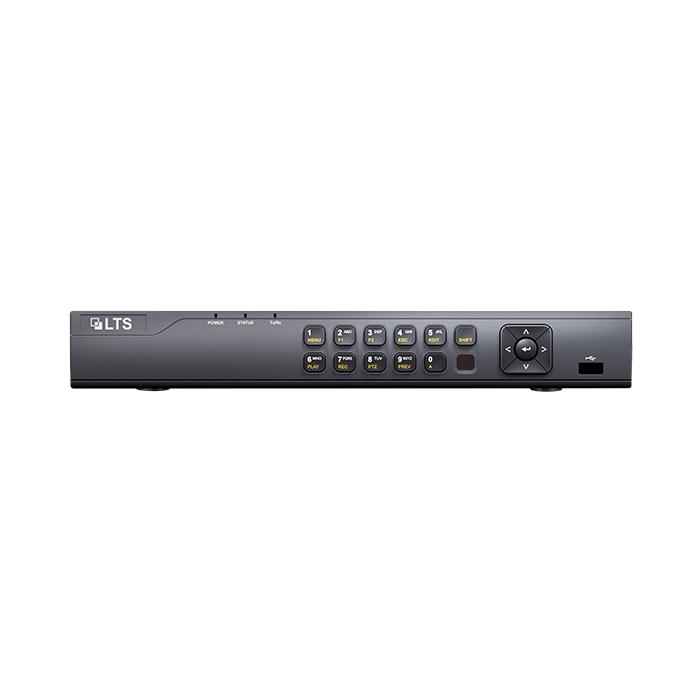

Platinum Professional Level 4 Channel HD-TVI 3.0 DVR

Be the first to review this product
Call for Price
Out of stock
SKU
LTD8504T-ST
In Stock
Show more Show less
Wish List Compare
  • 4 CH HD-TVI DVR
  • Support Live View, Storage, Playback up to 4CH HD-TVI 3MP / Analog / Analog HD Cameras+ 2CH IP Camera up to 4.1MP
  • Up to 1080P  (1920x1080) HDMI Video Output
  • 3MP@15fps/1080p@30fps
  • CVBS Output
  • 1 SATA up to 8TB HDD
  • H.264/H.264 Zip+
  • 2 USB 2.0
  • 4CH Audio Input
  • Long distance transmission over twisted-pair cable and coax cable
  • Supports LTS 3MP HD-TVI Cameras
  • Enhanced VCA Mode
More Information
Specifications
VIDEO/AUDIO INPUT
Video Compression H.264 Zip+/H.264
Video Input 4ch
BNC (1.0Vp-p, 75Ω)
IP Input Up to 2CH (Support ONVIF, up to 4MP Resolution)
Audio Compression G.711u
Audio Input 4-CH, RCA (2.0 Vp-p kΩ)
Two-Way Audio Input 1-CH, RCA (2.0 Vp-p kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution 3MP@15fps/1080p@30fps/720p@30fps
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ)
Frame Rate Main stream: 30f ps(N)/25fps(P)
Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCIF (real time)
Video Bit Rate 32 Kbps-10 M bps
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 4ch
NETWORK
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 1 SATA
Capacity Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1:10M / 100Mself-adapt ive Ethernet interface
Serial interface RS-4 85
USB Port 2 × USB2.0
Alarm In/Out 4/1
GENERAL
Power supply DC12V
Consumption ≤ 15W
Working temperature -10 °C ~ +55 °C(14°F - 131°F)
Working humidity 10% ~ 90%
Chassis 1U chassis
Dimensions (WxDxH) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight ≤1.5 Kg (4. lb)
Video
SKU LTD8504T-ST
Recorder Technology TVI DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 4-Channel
Spec Sheet (1.72 MB)
Quick Start Guide (3.24 MB)
User Manual (3.90 MB)
User Manual (1.96 MB)
