Platinum Professional Level 4 Channel HD-TVI 3.0 DVR Previous Platinum Professional Level 4 Channel HD-TVI 3.0 DVR

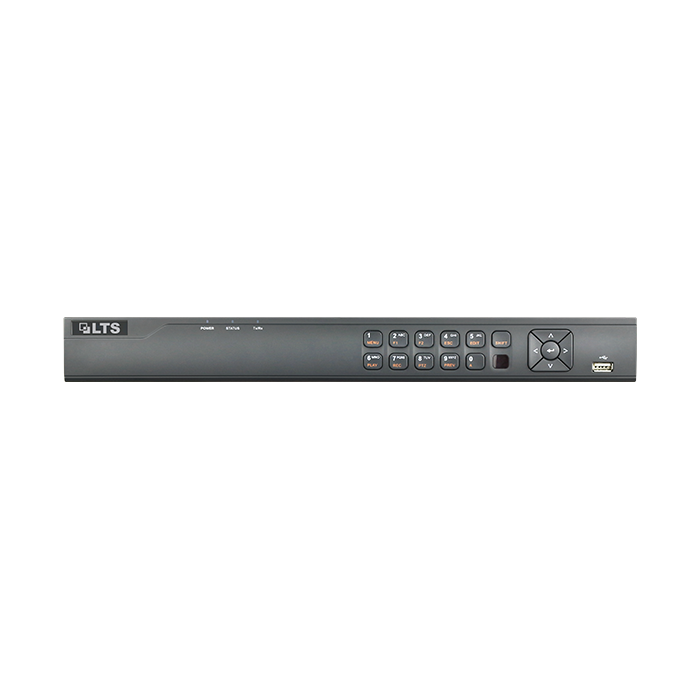

main product photo

Platinum Professional Level 16 Channel HD-TVI DVR

Be the first to review this product
Call for Price
Out of stock
SKU
LTD8516T-ST
Out of Stock
Show more Show less
Wish List Compare
  • 16 Channel Video Recorder
  • Support Live View, Storage, Playback up to 16 HD-TVI 3MP / Analog / AHD Cameras + 2 IP Camera up to 4MP
  • Up to 4K HDMI Video Output
  • 3MP@15fps / 1080p@30fps,
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • H.264 / H.264 Zip+
  • 2 USB 2.0
  • 4 CH Audio Input
  • Enhanced VCA Mode
More Information
Specifications
VIDEO/AUDIO INPUT
Video Compression H.264 Zip+ / H.264
Video Input

16ch

BNC (1.0 Vp-p, 75 Ω), supporting coaxitron connection
IP Input  up to 2CH (Support ONVIF, up to 4MP)
Audio Compression  G.711u
Audio Input  4CH, RCA (2.0 Vp-p, 1 kΩ)
Two-Way Audio Input  1CH, RCA (2.0 Vp-p, 1 kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output

VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution  3MP@15fps/1080p@30fps/720p@30fps
CVBS output  1-ch, BNC (1.0 Vp-p, 1 kΩ)
Frame Rate

Main stream: 25fps(P)/30fps(N)

Sub-stream:WD1/4CIF@12fps,CIF/QVGA/QCIF@real time frame rate
Video Bit Rate  32 Kbps-10 Mbps
Audio Output  1CH, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream  Support
Stream Type  Video, Video & Audio
Synchronous Playback  16CH
NETWORK
Remote Connections  128
Network Protocols  TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA  2 SATA
Capacity  Up to 8TB each
EXTERNAL INTERFACE
Network interface  1:10M / 100M self-adaptive Ethernet interface
Serial interface  RS-485
USB Port  2 × USB2.0
Alarm In/Out 16/4
GENERAL
Power supply DC12V
Consumption  ≤ 20W
Working temperature  -10 °C ~ +55 °C(14°F - 131°F)
Working humidity  10% ~ 90%
Chassis 1U chassis
Dimensions (WxDxH)  380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight  ≤2Kg (4.4lb)
Video
SKU LTD8516T-ST
Recorder Technology TVI DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
Spec Sheet (1.64 MB)
Quick Start Guide (3.24 MB)
Spec Sheet (1.60 MB)
Spec Sheet (1.66 MB)
User Manual (3.90 MB)
