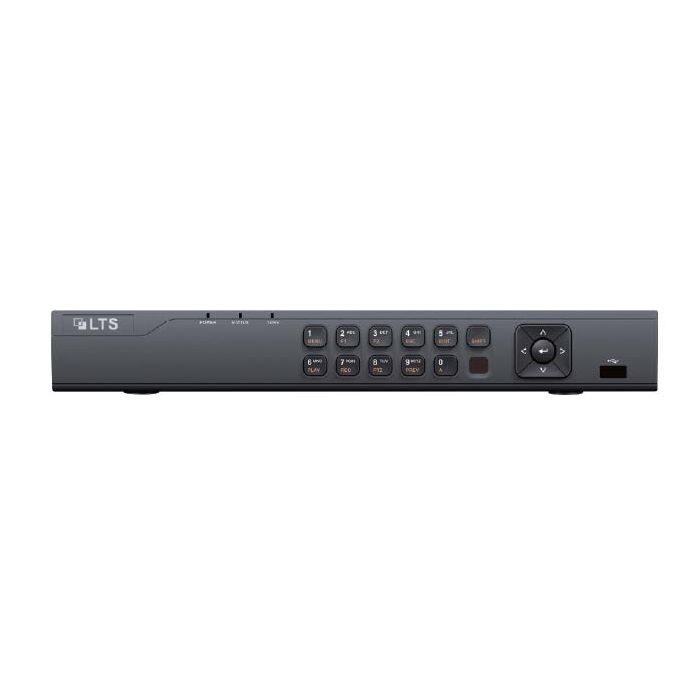

Platinum 8-Channel Professional Plus Level 4K NVR

Rating:
50 % of 100
1  Review Add Your Review
Call for Price
Out of stock
SKU
LTN8608-P8
Out of Stock
Show more Show less
Wish List Compare
  • Quad-core 8-Channel Network Video Recorder
  • Live View, Storage, and Playback up to 12.3 MP IP Camera
  • 80 MB Input Bandwidth
  • 8 Built-in PoE
  • 4K (3840 x 2160) HDMI, VGA, CVBS Video Output
  • 2 x SATA up to 12 TB HDD
  • 4 x POS via TCP/IP
  • Supports 6 MP / 12.3 MP Fisheye
  • Supports H.264 / H.264 Zip+, H.265 Ready
More Information
Specifications
Video / Audio Input
IP Video Input 8 channels, up to 12 MP resolution
Two-Way Audio Input 1 channel, RCA (2.0 Vp-p, 1 kΩ)
Network
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 256 Mbps
Remote Connection 128
Video / Audio Output
Recording Resolutions 12 / 8 / 6 / 5 / 4 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/  QCIF
HDMI Output 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 1920 × 1080p / 60 Hz, 1600 ×1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
VGA Output 1-ch, resolution: 1920 × 1080p / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
CVBS Output 1 channel
Audio Output 1 channel, RCA (Linear, 1kΩ)
Decoding
Live View / Playback Resolution 12 / 8 / 6 / 5 / 4 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 8 channels
Capability 2 chs. @ 4K, or 8 chs. @1080p
Hard Drives
SATA 2 x SATA Interfaces for 2 HDDs
Capacity Up to 8 TB for Each Disk
External Interface
Network Interface 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm Chs. In/Out 4/1
PoE
Interface 8 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Max. Power ≤120W
Supported Standard IEEE 802.3 af/at
General
Power Supply 100 ~ 240 V AC
Consumption ≤ 15 W
Operating Temperature 14º to 131 ºF (-10º to 55º C)
Operating Humidity 10% - 90%
Housing 19-Inch Rack-Mounted 1U
Dimensions 15 × 12.4 × 2.0" (380 × 315 × 52 mm)
Weight ≤8.8 lb (4 kg)
SKU LTN8608-P8
Recorder Technology IP / NVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 8-Channel
LTN8608-P8 Spec Sheet (1.10 MB)
LTN8608-P8 Quick Start Guide (743.50 kB)
LTN8608-P8 User Manual (2.75 MB)
