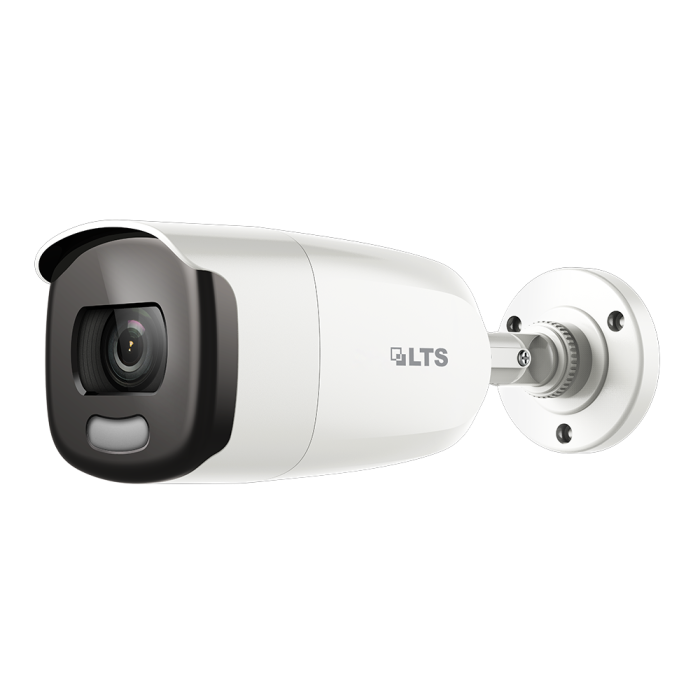

2.1MP 1080P HD-TVI Color 247 Bullet Camera

Camera

Image Sensor

2 MP CMOS image sensor

Resolution

1920 (H) × 1080 (V)

Frame Rate

PAL: 1080p@25fps NTSC: 1080p@30fps

Min. illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16x

Lens

3.6 mm fixed lens

Horizontal Field of View

83.6° (3.6 mm)

Lens Mount

M16

Day & Night

Color

Synchronization

Internal synchronization

WDR (Wide Dynamic Range)

120 dB

Menu

AGC

Yes

White Balance

Auto/Manual

BLC (Backlight Compensation)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

Power Consumption

Max. 4.2 W

Protection Level

IP67

Material

Front Cover: Metal, Main Body: Plastic, Bracket: Metal

White Light

Up to 131ft(40 m)

Communication

Up the coax, TVI output

Dimensions

223.1 mm × 77.1 mm × 82.6 mm (8.78" × 3.04" × 3.25")

Weight

Approx. 436 g (0.96 lb.)
