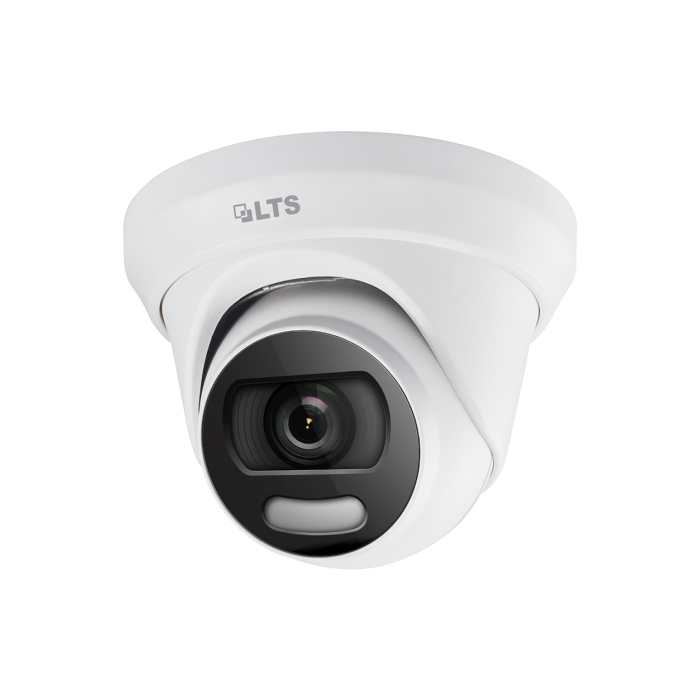

Platinum 2 MP Color 24/7 Turret HD-TVI Camera

Camera

Image Sensor

2 MP CMOS

Resolution

1920 (H) × 1080 (V)

Frame Rates

PAL: 1080p @ 25 fps
NTSC: 1080p @ 30 fps

Min. illumination

0.0005 Lux @ f 1.0, AGC on, 0 Lux with white light

Shutter Speed

PAL: 1/25 to 1/50,000 sec.

NTSC: 1/30 to 1/50,000 sec.

Slow Shutter

Max. 16 times

Lens

2.8 mm fixed lens

Field of View

2.8 mm: horizontal: 104°, vertical: 54°, diagonal: 126°

Lens Mount

M16

Day & Night

Color

Wide Dynamic Range (WDR)

130 dB

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu

Image Mode

STD / HIGH SAT

AGC

Yes

White Balance

Auto / Manual

HLC

Yes

Backlight Compensation
(BLC)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

Switchable among TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

*LTS recommends using only one power adapter per camera.

Power Consumption

Max. 3 W

Protections

IP67

Materials

Main Body: Metal Mounting Base: Plastic

Supplemental Light Range

Up to 66 ft (20 m)

Dimensions

Ø 4.32 × 3.37"  (Ø 109.82 × 85.56 mm)

Weight

Approx. 0.74 lb  (336 g)
