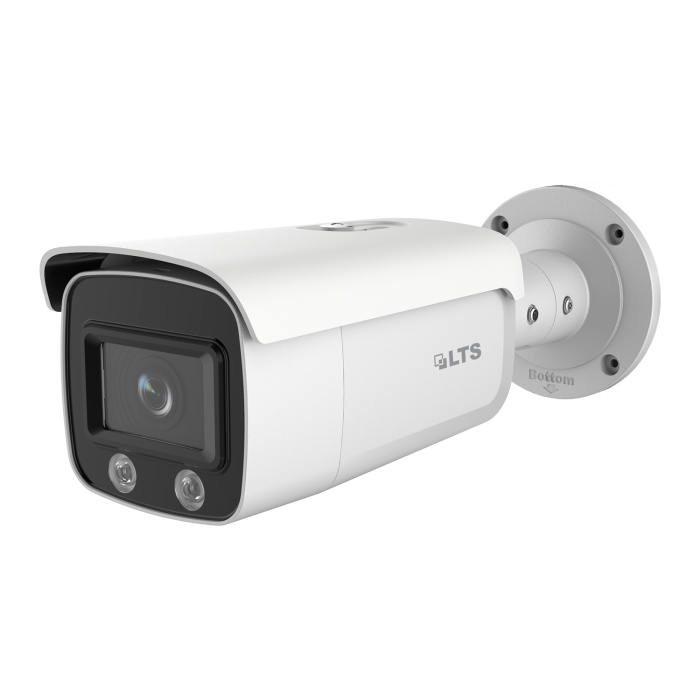

4 MP Full Color Fixed Bullet Network Camera

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

0.0014 @ (F1.0, AGC ON), 0 Lux with Light

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

DNR

3D DNR

Wide Dynamic Range

120dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal length

4 mm

Aperture

F1.0

Focus

Fixed

FOV

4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115°

Lens Mount

M16

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection, object removal detection, unattended baggage detection

Exception Detection

Scene change detection

Face Detection

Yes


Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fp s(1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Day/Night

ROI (Region of Interest)

Support 1 fixed region for main stream and sub-stream separately
