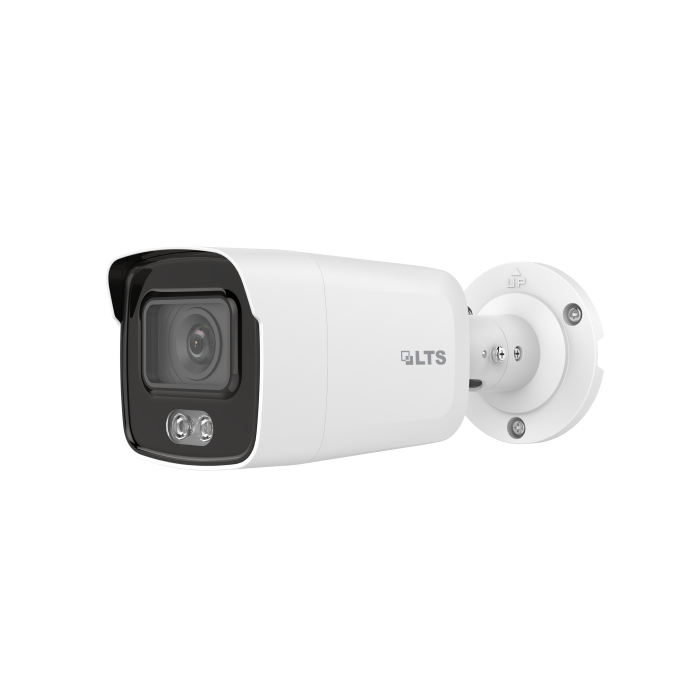

Platinum 4 MP Fixed Bullet IP Camera

Camera

Image Sensor

1/1.8" progressive scan CMOS

Min. Illumination

Color: 0.0014 Lux @ f 1.0, AGC on; 0 Lux with white light

Shutter Speed

1/3 to 1/100,000 sec.

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Angle Adjustment

Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°

Lens

Lens Type

2.8 mm, fixed lens

FOV

Horizontal: 102°, vertical: 51°, diagonal: 125°

Aperture

1.0

Lens Mount

M16

Supplemental Lighting

White Light Range

98 ft (30 m)

Video

Max. Resolution

2560 × 1440

Main Stream

50 Hz: 25 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+ / H.264+ / H.265 / H.264

Sub-stream: H.265 / H.264 / MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Stream Type

Main stream / Sub-stream / third stream

Simultaneous Live View

Up to 6 channels

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for each stream

Network

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,

IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User / Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS

1.2

Network Storage

MicroSD / SDHC / SDXC cards up to 256 GB, local storage and NAS (NFS, SMB / CIFS), ANR

Web Browsers

IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

Imaging

Day / Night Switch

Auto

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

S/N Ratio

> 50 dB

Interface

RS-232

RS-232 serial port control

On-board Storage

Built-in MicroSD / SDHC / SDXC

Hardware Reset

Yes

Communication Interface

1 x RJ45 10/100 Mbps self-adaptive Ethernet port

Smart Feature-Set

Basic Events

Motion detection, video tampering alarm, exception (IP address conflict, illegal login, HDD full, HDD error)

Premier Protection

Intrusion detection, line crossing detection

General

Web Client Language

English, Russian, Italian, French, Polish, Portuguese, Spanish, Turkish

General Functions

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masks, IP address conflict, flash log

Software Reset

Yes

Linkage Method

Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger capture

Storage Conditions

-22 °F to 140 °F (-30 °C to 60 °C)

Startup and Operating Conditions

-22 °F to 140 °F (-30 °C to 60 °C)

Power Supply

12V DC ± 20%, PoE: 802.3af

Power Consumption and Current

12V DC, 0.5 A, max. 6 W; PoE: (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 7.5 W

Power Interface

Φ 5.5 mm coaxial power plug

Materials

Metal

Camera Dimensions

3.3" × 3.3" × 8.6" (85 × 85 × 218 mm)

Package Dimensions

12.4" × 5.4" × 5.6" (315 × 137 × 141 mm)

Camera Weight

1.6 lb. (0.710 kg)

Shipping Weight

2.3 lb. (1.035 kg)

Certifications

Protections

Ingress protection: IP67 (IEC 60529-2013)

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011

+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environmental

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
