Platinum 4 MP Color 24/7 Fixed Turret IP Camera

Be the first to review this product

Call for Price

Out of stock

SKU

CMIP3C42W-M

Out of Stock

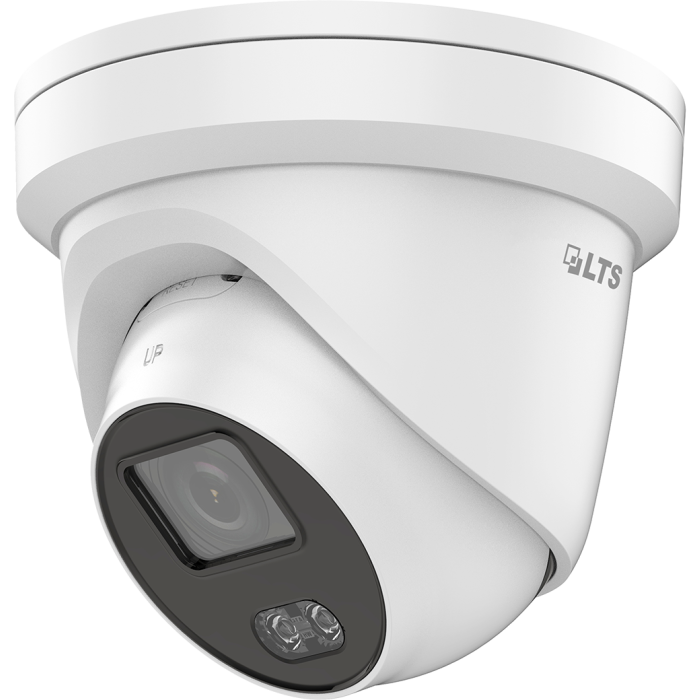

Platinum 4 MP Color 24/7 Turret IP Camera, 4 mm Fixed Lens, H.265+

Max. 2560 × 1440 @ 24 fps
4 mm fixed lens
H.265+, H.264+
120 dB WDR
0.0014 @ f 1.0 (1/30 sec., AGC on), 0.002 @ f 1.2 (1/30 sec., AGC on), 0 Lux with LED on
12V DC & PoE (802.3 af, class 3)
Built-in MicroSD / SDHC / SDXC slot, up to 128 GB
IP67
BLC / 3D DNR / HLC / Defog
24-hour color video

Show more Show less

Details

Max. 2560 × 1440 @ 24 fps
4 mm fixed lens
H.265+, H.264+
120 dB WDR
0.0014 @ f 1.0 (1/30 sec., AGC on), 0.002 @ f 1.2 (1/30 sec., AGC on), 0 Lux with LED on
12V DC & PoE (802.3 af, class 3)
Built-in MicroSD / SDHC / SDXC slot, up to 128 GB
IP67
BLC / 3D DNR / HLC / Defog
24-hour color video

Specs

More Information

Specifications

*Camera*
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	0.0014 @ f 1.0 (1/30 sec., AGC on), 0.002 @ f 1.2 (1/30 sec., AGC on), 0 Lux with LED on
Shutter Speed	1/3 to 1/100,000 sec.
Slow Shutter	Yes
Focal length	4 mm
Focus	Fixed
Aperture	f 1.0
FOV	4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5°
Lens Mount	M16
Auto-Iris	No
DNR	3D DNR
Wide Dynamic Range	120 dB
3-Axis Adjustment	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
*Compression Standard*
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Baseline Profile / Main Profile / High Profile
H.264+	Main stream
H.265 Type	Main Profile
H.265+	Main stream
Video Bit Rate	32 Kbps to 8 Mbps
*Imaging*
Max. Resolution	2560 × 1440
Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream	50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third stream	50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240) 60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)
Image Enhancement	BLC / 3D DNR / HLC / Defog
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Region of Interest (ROI)	No
*Network*
Network Storage	Supports MicroSD / SDHC / SDXC card (128 GB) local storage, NAS (NFS, SMB / CIFS), ANR
Alarm Trigger	Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (PROFILE S, PROFILE G), ISAPI
