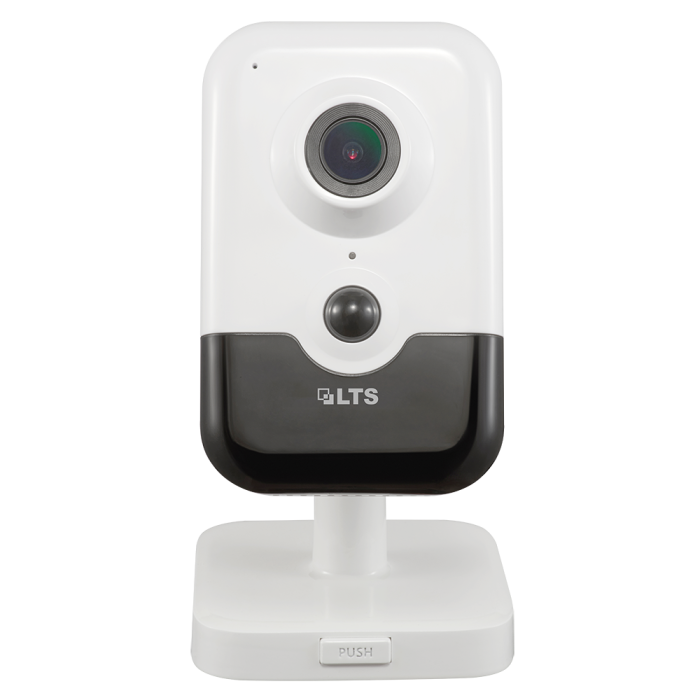

Platinum 4 MP Matrix IR Fixed Cube IP Camera

In stock

SKU

LTCMIP8942NW-28SWIFI

Out of Stock

Show more Show less

More Information

Specifications

Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.018 lux @ (f 1.6, AGC on), 0 lux with IR
Shutter Speed	1/3 to 1/100,000 sec.
Day & Night	IR cut filter
Noise Reduction	3D DNR
Wide Dynamic Range	120 dB
3-Axis Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 codec profile	Main Profile/High Profile
Bit Rate	256 Kbps to 16 Mbps
Audio compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Max. Resolution	2688 × 1520
Main Stream	50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub-Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection
Face Detection	Yes
Region of Interest	Support 1 fixed region for main stream and sub-stream separately

SKU

LTCMIP8942NW-28SWIFI

Camera Technology

IP / Network

Camera Series

Platinum Series

Camera Housing

Other

Camera Resolution

4MP
