eco - Platinum HD-TVI Turret Camera 2.1MP - White Previous eco - Platinum HD-TVI Turret Camera 2.1MP - White
main product photo

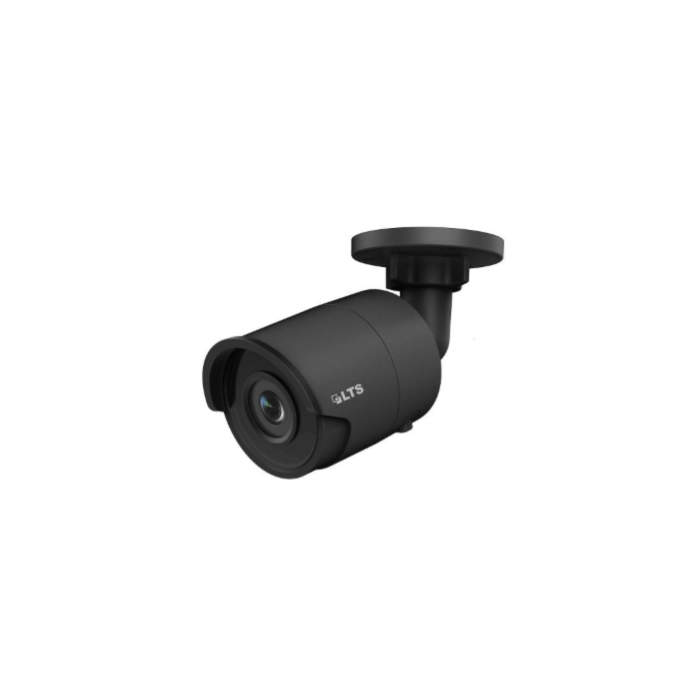

Platinum 4 MP Mini Bullet IP Camera - Black

Be the first to review this product
Call for Price
Out of stock
SKU
CMIP8342WB-28M
In Stock
Show more Show less
Wish List Compare
  • 4 MP
  • 2.8 mm
  • True WDR
  • Micro SD cards up to 128 GB
  • H.265+
  • Black housing
More Information
Specifications
Camera
Image Sensor  1/3" Progressive Scan CMOS
Min. Illumination Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 to 1/100,000 sec.
Lens 2.8 mm
Lens Mount M12
Day & Night IR cut filter
Digital noise reduction 3D DNR
Compression Standard
Video Compression

Main stream: H.265 / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264
H.264 codec profile Main profile / High Profile
Bit Rate 256 Kbps to 16 Mbps
Imaging
Max. Resolution 2688 × 1520
Frame Rates

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Image Enhancement BLC/3D DNR
Network
Network Storage Support MicroSD / SDHC / SDXC cards (128 GB), local storage and NAS (NFS,SMB / CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
API ONVIF (PROFILE S, PROFILE G), ISAPI
Web Browsers IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 x RJ45 10/100 Mbps self-adaptive Ethernet port
General
Operating Conditions -22° to 140° F (-30° to 60° C), Humidity 95% or less (non-condensing)
Power Supply 12V DC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3 af, class 3)
Power Consumption 12V DC, 0.4 A, max. 6 W PoE: (802.3 af, 36 to 57 V), 0.2 A to 0.1 A, max. 7.5 W
Protections

IP67

TVS 2,000V Lightning, Surge, and Transient Voltage Protections
Dimensions

Camera: Φ 2.8 x 6.1" (Φ 70 x 155 mm)
Packaging: 8.5 x 4.8 x 4.7" (216 x 121 x 118 mm)
Weight Camera: approx. 0.9 lb (410 g)
SKU CMIP8342WB-28M
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 4MP
CMIP8342WB-28M Spec Sheet (881.80 kB)
