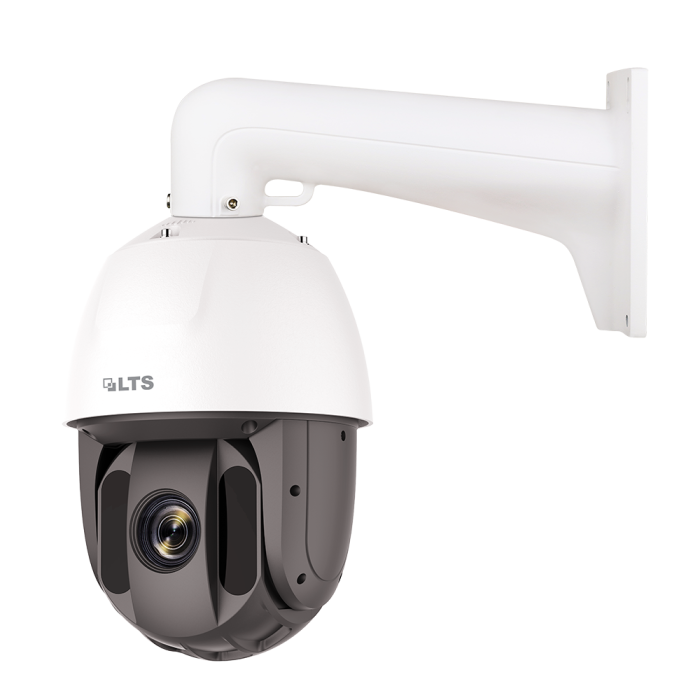

Platinum 4 MP Speed Dome with 25x Zoom

Camera Module

Image Sensor

1/2.5" progressive scan CMOS

Min. Illumination

Color: 0.005 Lux @ f 1.6, AGC on; B&W: 0.001Lux @ f 1.6, AGC on

0 Lux with IR

White Balance

Auto / Manual / ATW (Auto-tracking White Balance) / Indoor / Outdoor/  Fluorescent Lamp / Sodium Lamp

Gain

Auto / Manual

Shutter Speed

50 Hz: 1/1 to 1/30,000 sec.

60 Hz: 1/1 to 1/30,000 sec.

Day & Night

IR Cut Filter

Digital Zoom

16×

Privacy Mask

24 programmable privacy masks

Focus Modes

Auto / Semi-automatic / Manual

WDR

120 dB WDR (not supported by full frame rate)

Lens

Focal Length

4.8 to 120 mm, 25× optical zoom

Zoom Speed

Approx. 3.6 sec. (optical lens, wide-tele)

Field of View

Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele)

Operating Range

10 to 1,500 mm (wide-tele)

Aperture Range

1.6 to 3.5

Infrared

Distance

492 ft (150 m)

Smart IR

Supported

PTZ

Range of Motion (Pan)

360° endless

Pan Speed

Configurable, from 0.1° / sec. to 120° / sec.
Preset speed: 120° / sec.

Movement Range
(Tilt)

From -15° to 90° (auto-flip)

Tilt Speed

Configurable, from 0.1° / sec. to 80° / sec.
Preset Speed: 80° / sec.

Proportional Zoom

Supported

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Supported

Park Action

Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan

3D Positioning

Supported

PTZ Position Display

Supported

Preset Freezing

Supported

Scheduled Tasks

Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / Aux Output

Compression Standard

 Video Compression

Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264 / MJPEG
