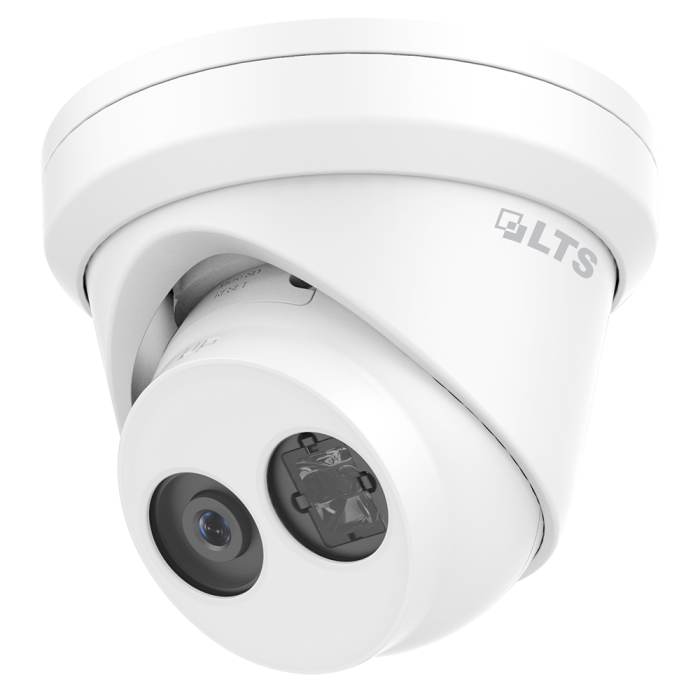

4MP Network Matrix IR Turret Camera w/ Built-in Microphone

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

120 dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 2.8 mm

Aperture

F1.6

FOV

2.8 mm: Horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°

Lens Mount

M12

Illuminator

IR Range

Up to 98ft(30 m)

Wavelength

850 nm

Video

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream/third stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
