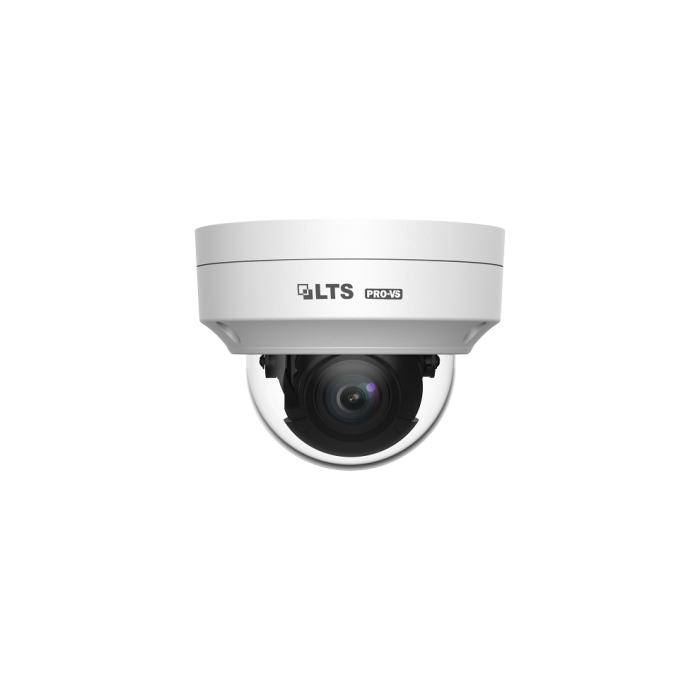

Pro-VS 4 MP Vari-Focal Dome IP Camera

Call for Price
In stock
SKU
VSIP7643W-SZ
In Stock
  • Resolution: 4 MP, 2592 x 1520 @ 30 fps
  • Varifocal Lens: 2.8 - 12 mm, Auto Focus Motorized Zoom Lens
  • Min. Illumination: 0.003 lux @ f 1.6
  • Compression: Ultra 265 / H.265 / H.264
  • IR: Smart IR LED up to 98 ft
  • Features: 120 dB WDR, 2D / 3D DNR, BLC, HLC, Digital Defog
  • Audio Channels In/Out
  • Alarm Channels In/Out
  • Storage: MicroSD up to 256 GB, Automatic Network Replenishment
  • 3-Axis positioning
  • Rating: IP67, IK10 Vandal Resistance, 6 KV Surge Protection
  • Power: 12V DC, PoE
  • Junction box included
More Information
Specifications

Camera

Sensor

1/3", 4.0 MP, progressive scan, CMOS

Lens

2.8 - 12 mm, auto-focus and motorized zoom lens

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63.0

25.2

12.6

6.3

12

270.0

108.0

54.0

27.0

Angle of view (H)

98.26°~ 31.35°

Angle of View (V)

54.76°~ 18.55°

Angle of View (O)

127.74°~36.99°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 70°

Rotate: 0° ~ 360°

Shutter

Auto / Manual, 1 ~ 1/100,000 sec.

Minimum Illumination

Color: 0.003 Lux (f 1.6, AGC on)

0 Lux with IR

Day / Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D / 3D DNR

S/N

>56 dB

IR Range

Up to 98 ft (30 m) IR range

Wavelength

850 nm

IR On / Off Control

Auto / Manual

Defog

Digital Defog

WDR

120 dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code
profile

Baseline profile, Main Profile

Frame Rates

Main Stream: 4 MP (2592 x 1520), up to 30 fps; 4 MP (2560 x 1440), up to 30 fps; 3 MP (2304 x 1296), up to 30 fps; 1080p (1920 x 1080), up to 30 fps

Sub Stream: 4CIF (704 x 576), up to 30 fps

Third Stream: CIF (352 x 288), up to 30 fps

Video Bit Rates

128 Kbps - 16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

Region of Interest

Up to 2 areas

Motion
Detection

Up to 4 areas

Imaging

White Balance

Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2

Digital noise reduction

2D / 3D DNR

Smart IR

Supported

Flip

Normal / Vertical / Horizontal / 180°

Dewarping

NA

HLC

Supported

BLC

Supported

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8  Hz

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR

Smart Functions

Detections

Human Body Detection

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

LTS Pro-VS station

Web Browsers

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

Network

10M/100M Base-TX Ethernet

Certifications

General

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power

12V DC ±25%, PoE (IEEE 802.3af)

Power consumption: Max 8.7 W

Dimensions
(Ø x H)

Ø 5.04 x 3.93” (Φ 128.1 x 99.9 mm)

Net Weight

0.57 kg (1.26 lb)

Materials

Shield: PC
Body, Bottom Plate: Metal

Operating Environment

-31° to 140° F (-35° to 60° C), Humidity: ≤ 95% RH (non-condensing)

Strorage Environment

-31° to 140° F (-35° to 60° C), Humidity: ≤95% RH (non-condensing)

Surge Protection

6 KV

Ingress Protection

IP67

Vandal
Resistance

IK10

Reset Button

Supported

SKU VSIP7643W-SZ
Camera Technology IP / Network
Camera Series Pro-VS
Camera Housing Dome
Camera Resolution 4MP
