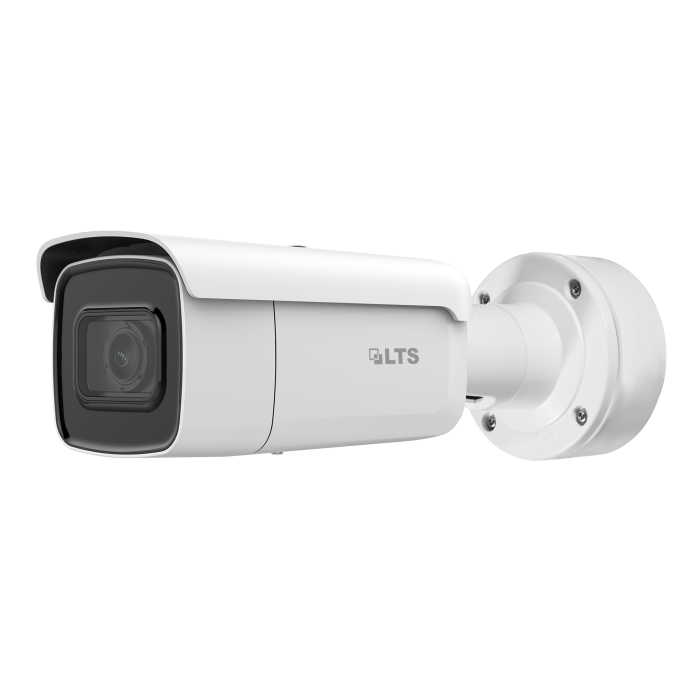

Platinum 6 MP Varifocal Bullet IP Camera

Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ f 1.6, AGC on, 0 Lux with IR

Shutter Speed

1/3 to 1/100,000 sec.

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120 dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°

Lens

Focal Length

2.8 to 12 mm

Lens Type

Motorized

Aperture

1.6

Focus

Auto

FOVs

Horizontal: 88° to 27°
Vertical: 56° to 18°
Diagonal: 110° to 33°

Lens Mount

Φ 14

IR

IR Range

Up to 164 ft (50 m)

Wavelength

850 nm

Compression Standard

Video Compression

Main stream: H.265 / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264

H.264 Type

Main Profile / High Profile

H.264+

Main stream supported

H.265 Type

Main Profile

H.265+

Main stream supported

Video Bit Rate

32 Kbps to 16 Mbps

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

Supports 1 fixed region for main stream and sub-stream

Imaging

Max. Resolution

3072 × 2048

Main Stream

50 Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656)
30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60 Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC / 3D DNR / HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Day / Night Switch

Day / Night / Auto / Schedule / Triggered by Alarm In

*Note: When the main stream resolution is 2944 × 1656 and above, max frame rate is 20 fps for all streams.

Network

Network Storage

Support for MicroSD / SDHC / SDXC card (128 GB), local storage and NAS (NFS, SMB / CIFS), ANR

Alarm Triggers

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Functions

One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Web Browser

Plug-in required live view: IE 8+, Chrome 41.0 - 44, Firefox 30.0 - 51, Safari 8.0 - 11
Plug-in-free live view: Chrome 45.0+, Firefox 52.0+

Interface

Audio

1 input (line in), 1 output (line out), mono sound, terminal block

Alarm

1 input, 1 output (max. 12 V DC, 30 mA), terminal block

Communication Interface

1 x RJ45 10/100 Mbps self-adaptive Ethernet port

Video Output

1Vp-p composite output (75 Ω) (For adjustment only)

On-board storage

Built-in MicroSD / SDHC / SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding support

Reset Button

Yes

Audio

Environment Noise Filtering

Yes

Audio Sampling Rates (kHz)

8 / 16 / 32 / 44.1 / 48

Audio Compression

G.711 / G.722.1 / G.726 / MP2L2 / PCM

Audio Bit Rate

64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 - 192 Kbps (MP2L2)

General

Operating Conditions

-22° to 140° F  (-30° to 60° C), humidity 95% or less (non-condensing)

Power Supply

12 V DC ± 25%, PoE (802.3at, class 4), Φ 5.5 mm coaxial power plug

Power Consumption and Current

12 VDC, 1.2 A, max. 14.5 W

PoE (802.3at, 42.5 to 57 V), 0.5 A to 0.3 A, max. 18 W

Protection Ratings

IP67

Materials

Metal

Dimensions

Φ 4.1" × 11.7"  (Φ 105.1 × 297.5 mm)

Weight

Camera: Approx. 2.8 lb. (1,285 g)

Shipping: Approx. 4.3 lb. (1,964 g)
