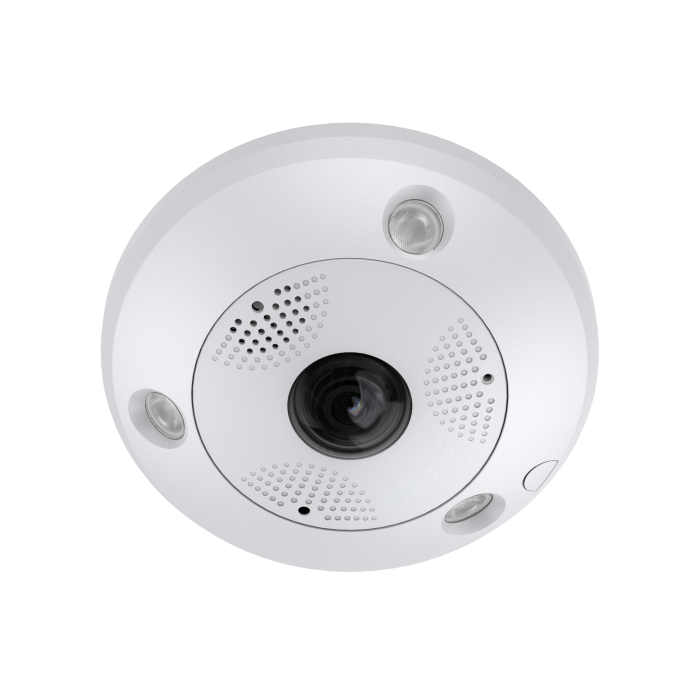

Platinum 6.3 MP Indoor/Outdoor Fisheye IP Camera

Camera

Image Sensor

1/1.8'' Progressive Scan CMOS

Min. Illumination

Color: 0.047 Lux @ f2.6, AGC on

B&W: 0.0047 Lux @ f2.6, AGC on, 0 Lux with IR

Shutter Speed

1 to 1/100,000 sec.

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

Digital

Lens

Focal Length

1.27 mm

Aperture

f2.6

Field of View

Horizontal 180° for wall mount, 360° for ceiling  or table mount

Lens Mount

M12

IR

IR Range

Up to 50 ft (15 m) IR range, 3 LEDs; Each LED is independently controlled

Wavelength

850 nm

Compression Standards

Video Compression

Main stream: H.264 / H.264+ / H.265 / H.265+
Sub stream: H.264 / H.265 / MJPEG

H.264 Type

Baseline Profile / Main Profile / High Profile

H.264+

Main stream

H.265 Type

Main Profile

H.265+

Main stream

Video Bit Rate

32 Kbps to 16 Mbps

SVC

H.265 and H.264 supported

Smart Features

Behavior Analysis

Line crossing, intrusion, region entrance / exit, unattended baggage, and object removal detections

Exception / Anomaly Detection

Audio exception / anomaly detection

Region of Interest

4 fixed regions for main- and sub-streams

Imaging

Max. Resolution

3072 × 2048

Main Stream Max. Frame Rate

50 Hz: 25 fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

60 Hz: 30 fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

Sub Stream Max. Frame Rate

50 Hz: 25 fps (720 × 720, 720 × 480)

60 Hz: 30 fps (720 × 720, 720 × 480)

Image Enhancement

BLC, HLC, defog, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser

Day / Night Switching

Day / Night / Auto / Schedule / Triggered by Alarm In (-S)

Picture Overlay

Logo can be overlaid on video with 128 × 128 24-bit bmp format

Live View Display

Mount Types

Table, wall, and ceiling

Decoding Modes

Supports hardware and software decoding

Display Modes

18 total display modes in software decoding:

Ceiling mount: Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, half sphere, cylinder

Wall mount: Fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ

Table mount: Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder

Hardware decoding:

Ceiling mount: Fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Wall mount: Fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 / 16 kHz

Audio Compression

G.711 / G.722.1 / G.726 / MP2L2 / PCM

Audio Bit Rates

64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 - 160 Kbps (MP2L2)

Network

Network Storage

Supports MicroSD / SDHC / SDXC cards up to 256 GB; local storage and NAS (NFS, SMB / CIFS), ANR

Alarm Triggers

Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,  UPnP,  SMTP,  SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Security Measures

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

General Functions

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels, administrator, operator and user

Web Browser

IE8+, Chrome 31.0 - 44, Firefox 30.0 - 51, Safari 8.0+

Interface

Communication Interface

1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet port

Audio Channels

1 x Audio input (line in, 3.5 mm), 1 x audio output (line out, 3.5 mm); 2 x built-in microphone, 1 x built-in speaker (mono)

Alarm Channels

1 x alarm input, max. 12 V; 1 x alarm output, max 24 VDC, 1 A

On-board storage

Built-in MicroSD / SDHC / SDXC slot, up to 256 GB

Reset Button

Yes

General

Operating Conditions

-40° to 140° F (-40° to 60° C), Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 20%, PoE (802.3 af, class 0),

Two-core terminal block

Power Consumption

12 VDC, 0.9 A, max. 11 W

PoE (802.3 af, 36 to 57 V), 0.3 to 0.2 A, max. 12 W

Protection Levels (-V)

IP67, IK10

Material

Metal

Dimensions

φ 6. 6 × 2.0"  (φ 167.4 × 49.9 mm)

Weight

Approx. 2.97 lbs  (1,347 g)
