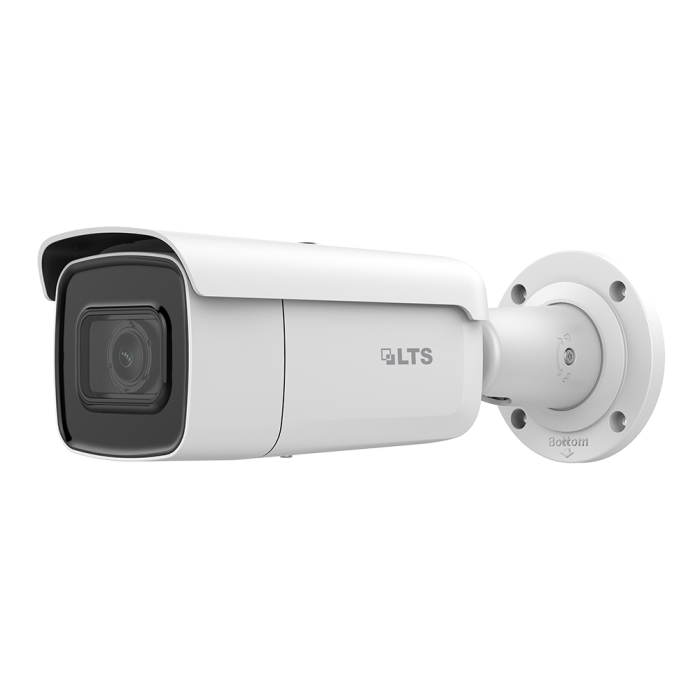

Platinum 8 MP Varifocal Bullet IP Camera

Camera

Image Sensor

1/2.5" Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ f 1.6, AGC on; 0 Lux with IR

Shutter Speed

1/3 to 1/100,000 sec.

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°

Lens

Focal Length

2.8 to 12 mm

Lens Type

Motorized

Aperture

1.6

Focus

Auto

FOV

Horizontal field of view: 105° to 34.5°

Vertical field of view: 55° to 19° Diagonal field of view: 125° to 40°

Lens Mount

Φ14

Infrared Lighting

Range

Up to 164 ft (50 m)

Wavelength

850 nm

Compression Standards

Video Compression

Main stream: H.265 / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265/H.264

H.264 Type

Main Profile / High Profile

H.264+

Supported in main stream

H.265 Type

Main profile

H.265+

Supported in main stream

Video Bit Rate

32 Kbps to 16 Mbps

Smart Features

Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

Support for 1 fixed region for main stream and sub-stream

Imaging

Max. Resolution

3840 × 2160

Main Stream

50 Hz:
12.5 fps (3840 × 2160)
20 fps (3072 × 1728)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:
15 fps (3840 × 2160)
20fps (3072 × 1728)
30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 25 fps (1280 ×720, 640 × 360, 352 × 288)

60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC / 3D DNR / HLC
