Alarm Controls Access Control Keypad Indoor 3 Yr Warranty
Out of stock
SKU
LTK-KP-100A
In Stock

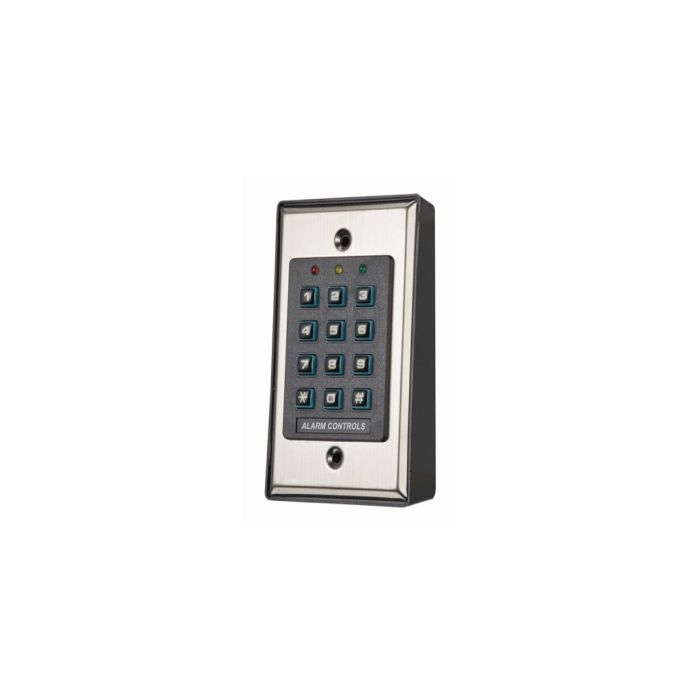

The KP-100A is a self-contained digital access control keypad that can be flush mounted on a single gang box or surface mounted on its plastic mounting box. Easy to install and easy to program, this keypad is ideal for access control and alarm arm/disarm control systems.
| Specifications | Standard Features Single gang or flush mount stainless steel plate 12-key illuminated 3x4 keypad True 10-digit operation (10 digits plus * and # keys) 1 - 1,000 user codes capability 1 - 50 visitor codes for temporary workers and visitors Easy programming from the keypad Built-in tamper switch with N.C. dry contact Passage mode and Lockout mode Configurable audible keystroke echo tone Red, green and yellow LEDs for status and programming feedback Fail safe or fail secure capable Easy to install with simple hand tools 5A SPDT timed, control relay (1) output Request to exit (REX) input For indoor applications only 3 year warranty Accessories Comes standard with surface mount back box Specifications Dimensions Keypad: 2-3/4”W X 4-1/2”H X 5/32”D Surface mount back box: 2-13/16”W X 4-5/8”H X 1-7/16”D Electrical Operating Voltage 12-24V AC/DC [+/- 10%] Operating Current 12VDC: 40mA at rest; 100mA active 24VDC: 70mA at rest; 50mA active Output Relay – (1) Form C dry contacts 5A/30 VDC Max – Fail Safe or Fail Secure REX Input – N.O. dry contact 1mA/5VDC Max Tamper Switch – N.C. dry contact 50mA/24VDC Max Environmental Operating Temperature -4°F to +158°F [-20°C to +70°C] Humidity 5-95% relative humidity non-condensing Indoor use only Shipping Weight 0.5lb [0.23kg] |
|---|---|
| SKU | LTK-KP-100A |
