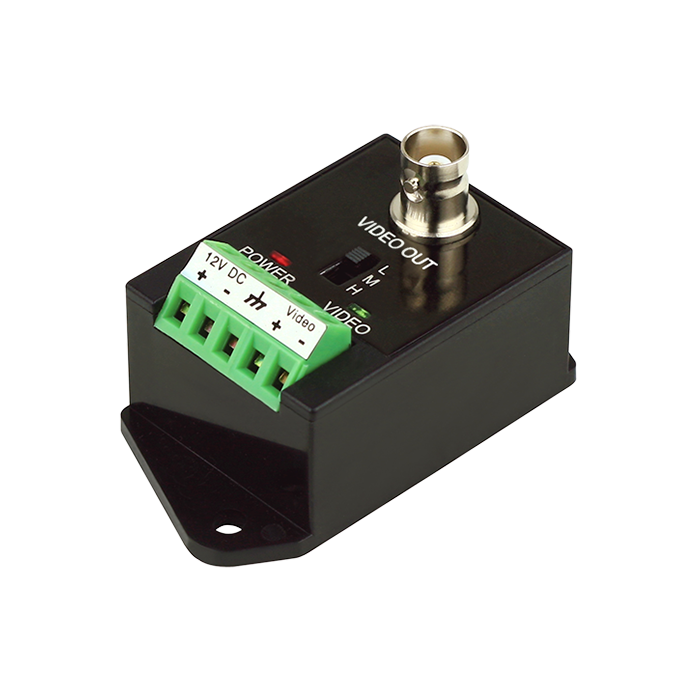

Active Balun Transmitter - 1CH DSA

Call for Price
Out of stock
SKU
LTAB1011R
Out of Stock
  • Single Channel Active Video Receiver
  • Long Distance Transmission of PAL /NTSC Real-time Video
  • DSA
  • Transmission of Single Channel Data
  • Exceptional Interference Rejection
  • Options for Distances : Three Levels
  • Red Light for Power ,Green Light for Video
  • Built -in Surge Protection ,Lighting Protection and other Protection Settings
  • Convenient Wiring , Higher Cable Utilization Rate and Lower Composite Wiring Cost;Wiring Cost, Compact Size and Cabinet Installation
More Information
Specifications

Video
Frequency  DC To 5MHz
Impedance Coax BNC 75 Ω  ;UTP RJ45:100Ω
CMRR 60dB typ
Attenuation 0.3dB typ
Environment
Temperature  Woring Temp:-10℃ ~ +50 ℃
Storage Temp:-30℃ ~ +70 ℃
Wire Type
Humidity 0 ~95%RH
Category Type   UTP CAT5 .24-16AWG


Impedance 9 Ω (100M)
Power
  DC12V
UTP Port
  Terminal Block
Packing
Quantity in Box  1pc
Box Weight 40(g)
Box Dimension 78*38*36(mm)
Box Quantity Per Carton 200pcs
Carton Net Weight 8000(g)
Carton Gross Weight 8500(g)
Carton Dimension 590*275*435(mm)
SKU LTAB1011R
