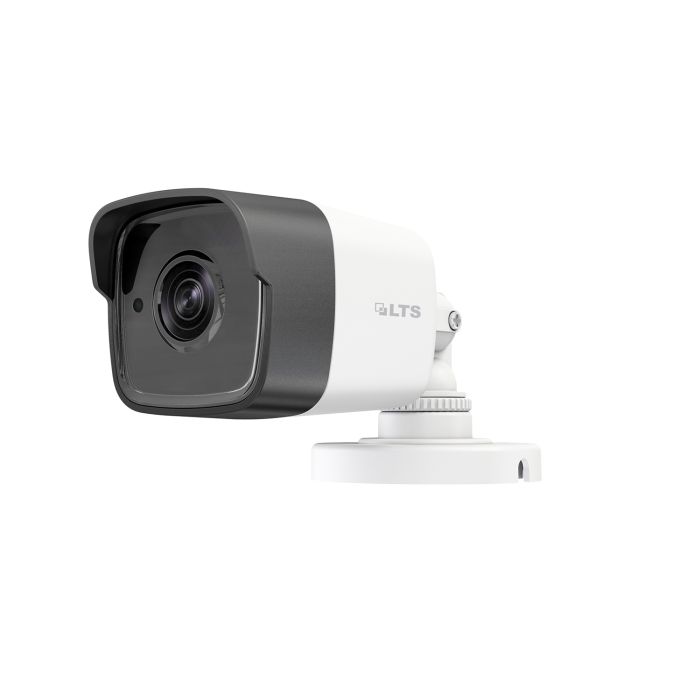

Platinum 2 MP Fixed Bullet HD-TVI Camera

Camera

Image Sensor

2.0 MP progressive scan CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) x 1080 (V)

Frame Rates

PAL: 1080p @ 25 fps

NTSC: 1080p @ 30 fps

Min. illumination

Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR

Shutter Speed

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Lens

2.8 mm fixed lens

Horizontal Field of View

104° (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

Wide Dynamic Range (WDR)

≥ 130 dB

Range of Motion

Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°

Menu

Image Mode

STD / HIGH-SAT

AGC

Supported

Day / Night Mode

Auto / Color / Black & White

White Balance

Auto / Manual

Auto Exposure (AE) Mode

WDR / BLC / HLC / Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction (NR)

3D / 2D

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR, HLC

Interface

Signal Options

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

*LTS recommends using one power adapter per camera.

Power Consumption

Max. 3.4 W

Ingress Protection

IP67

Materials

Metal

IR Range

Up to 98 ft (30 m)

Communication

Up the coax, TVI output

Dimensions

2.28 × 2.40 × 6.42"  (58 × 61 × 163 mm)

Weight

Approx. 0.75 lb  (340 g)
