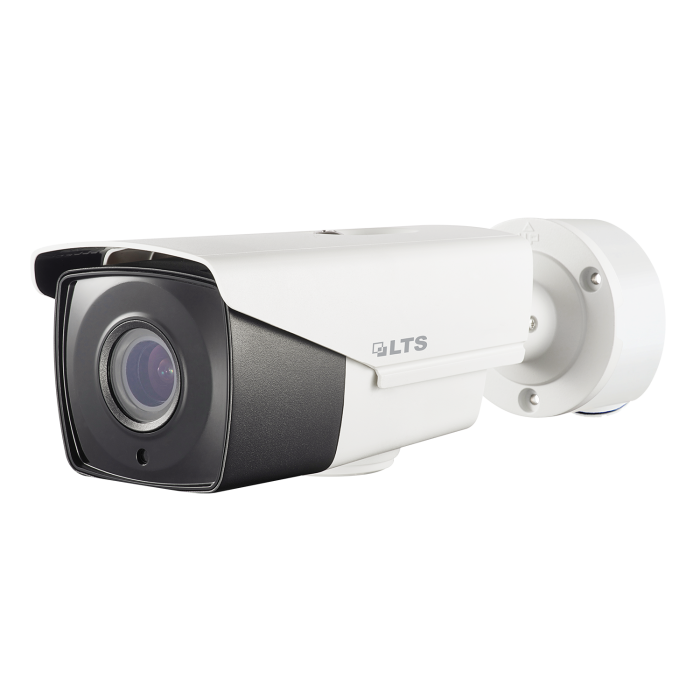

Platinum 2 MP Varifocal Bullet HD-TVI Camera

Camera

Image Sensor

2 MP CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rates

PAL: 1080p @ 25 fps

NTSC: 1080p @ 30 fps

Min. Illumination

Color: 0.003 Lux @ (f1.2, AGC on), 0 Lux with IR

Shutter Speeds

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Slow Shutter

Max. 16 times

Lens

2.7 to 13.5 mm motorized, auto focus

Horizontal Field of View

103° to 32.1°

Lens Mount

Φ14

Day & Night

ICR

Wide Dynamic Range (WDR)

≥ 130 dB

Range of Motion

Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Menu

Image Mode

STD / HIGH-SAT

AGC

Yes

Day  / Night Mode

Auto / Color / Black & White

White Balance

Auto / Manual

Auto Exposure (AE) Mode

WDR / BLC / HLC / Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction (NR)

3D DNR / 2D DNR

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable among TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ±25%, 24 VAC ±25%

*LTS recommends using one power adapter for each camera.

Power Consumption

Max. 9W

Ingress Protections

IP67

Materials

Metal

IR Range

Up to 263 ft (80 m)

Dimensions

3.3 × 3.6 × 10.6" (85 × 92 × 269.6 mm)

Weight

Approx. 2.07 lb (940 g)
