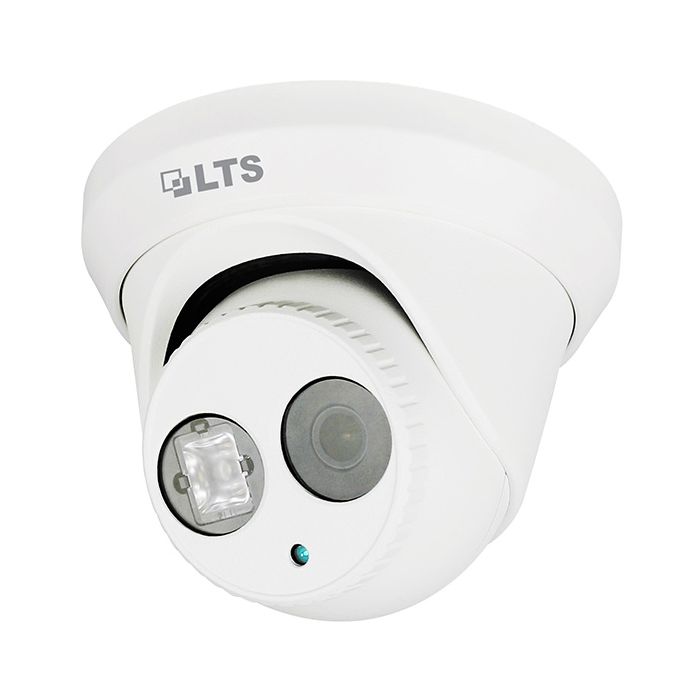

Platinum HD-TVI Turret Camera 2.1MP - 2.8mm

Be the first to review this product

Call for Price

Out of stock

SKU

LTCMHT2722W-28

Out of Stock

Discontinued. Full HD 1080P, Platinum HD-TVI, 1/3"Sensor, 2.8mm Fixed Lens, 1 Matrix IR LED up to 131ft (40m), 120dB True WDR, OSD Menu via UTC technology with Platinum TVI DVR, DC 12V

2.1MP High Definition
Full HD 1080P
1920X1080P@30fps
2.8mm Fixed Lens
1 Matrix IR LED up to 131ft
Outdoor/Indoor
DC 12V
IP66
UTC

Show more Show less

Details

2.1MP High Definition
Full HD 1080P
1920X1080P@30fps
2.8mm Fixed Lens
1 Matrix IR LED up to 131ft
Outdoor/Indoor
DC 12V
IP66
UTC

Specs

More Information

Specifications

Camera
Image Sensor	1/3"Sensor
Signal System	NTSC / PAL(Euro Version)
Effective Pixels	1920(H)×1080(V)
Min. Illumination	0.01 Lux @ (AGC ON),0 Lux with IR
Shutter Speed	NTSC: 1/30 ~ 1/50,000 PAL: 1/25 ~ 1/50,000
Lens	2.8mm, FOV: 103°
Day & Night	ICR
Synchronization	Internal synchronization
Video Frame Rate	NTSC:1080p@30fps/PAL:1080p@25fps
HD Video Output	1 Analog HD output
S/N Ratio	More than 52dB
Menu
Scene	Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID	On / off (15 characters, position programmable)
AGC	Support
D / N Mode	Color / BW / EXT
White Balance	ATW, AWC-SET, Indoor, Outdoor, Manual
D/N Mode	Color/BW/SMART IR
Privacy Mask	On/Off,maximum 8 zones
Motion Detection	On / Off, maximum 4 zones
BLC	Support
Anti-flicker	On / off
Language	English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Function	Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
General
Working Temperature /Humidity	-40°F - 140°F(-20 °C - 60 °C )
Working Temperature /Humidity	Humidity 90% or less (non-condensing)
Power Supply	12V DC
Power Consumption	Max.5W
Weather Proof Ratings	IP66
IR Range	Up to 131ft(40m)
Dimension	φ4.5'' × 3.5'' ( φ114.6 x 89.1mm)
Weight	0.7lb(300g)
