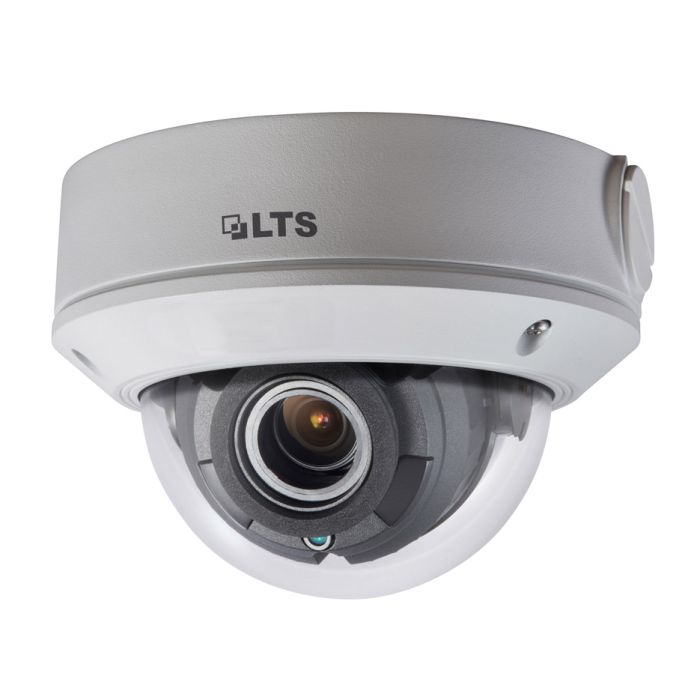

| Specifications |
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.005 Lux @ (f1.6, AGC on), B&W: 0 Lux with IR |
| Shutter Speed |
1/3 to 1/100,000 sec. |
| Wide Dynamic Range |
120 dB |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° |
| Lens |
| Lens Type |
Varifocal, motoried, 2.8 to 12 mm |
| Focal Length & Field of View |
2.8 to 12 mm: Horizontal 102° to 31°, vertical 54° to 17°, diagonal 123° to 35° |
| Lens Mount |
Ø 14 |
| Iris Type |
Fixed |
| Aperture |
f1.6 |
| Illuminator |
| IR Wavelength |
850 nm |
| IR Range |
Up to 30 m |
| Video |
| Main Stream |
50 Hz: 20 fps (2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.264 / H.264+ / H.265 / H.265+
Sub-stream: H.264 / H.265 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile / Main Profile / High Profile |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface, ISAPI |
| User / Host |
Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage |
MicroSD / SDHC / SDXC cards (up to 256 GB) local storage |
| Web Browsers |
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Imaging |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day / Night Switching |
Auto, Schedule, Day, Night |
| Image Enhancement |
BLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 x RJ45 10/100 Mbps self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card storage supports MicroSD / SDHC / SDXC cards up to 256 GB |
| Reset Key |
Yes |
| Event Types |
| Basic Events |
Motion detection, video tampering alarm, exceptions / anomalies |
| Linkage |
Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| General |
| Power |
12 VDC ± 25%, 0.8 A, up to 10 W, Ø 5.5 mm coaxial power plug
PoE: 802.3 af, Class 3, 36 to 57 V, 0.32 to 0.2 A, max. 11.5 W |
| Camera Materials |
Metal |
| Camera Dimensions |
Ø 5.6 × 3.9" (Ø 141 × 99.9 mm) |
| Package Dimensions |
5.5 × 5.5 × 6.1" (140 × 140 × 154 mm) |
| Camera Weight |
Approx. 1.8 lb (820 g) |
| Package Weight |
Approx. 2.6 lb (1,200 g) |
| Storage Conditions |
-22° to 140° F (-30° to 60° C). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-22° to 140° F (-30° to 60° C). Humidity 95% or less (non-condensing) |
| Language |
English |
| General Functions |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Certifications |
| EMC |
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,
EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015) |
| Safety |
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015) |
| Environmental |
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) |
| Electrical Safety Protections |
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
|
