Platinum 5-Directional Multi-sensor IP Camera

Be the first to review this product

Call for Price

In stock

SKU

LTCMIP7553W5-SZ8

In Stock

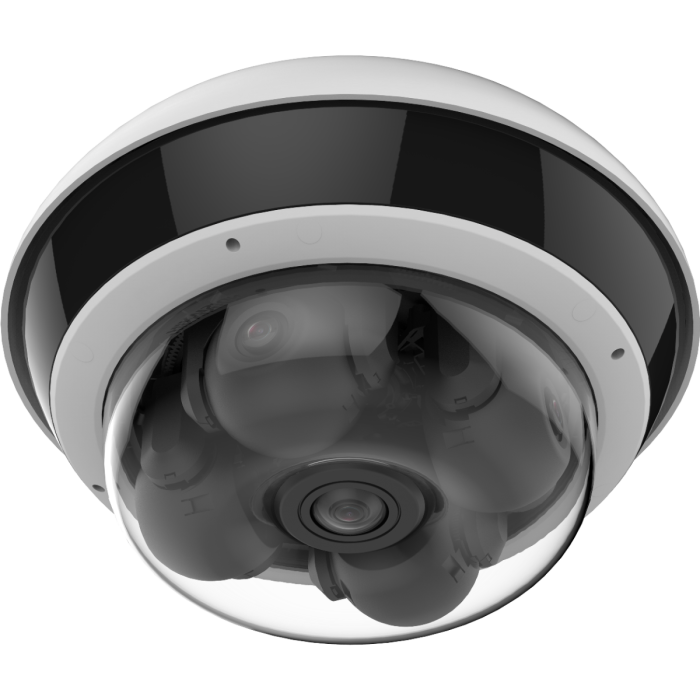

Four adjustable lenses and single fixed lens together capture up to 360 degrees, eliminating blind spots. The top/center lens records at up to 5 MP, capturing clear images and details that can be displayed on a video wall. Clear imaging against strong back light is due to the 120 dB true WDR technology. LTS's unique InstaDome feature enables efficient installation.

Image Sensors: Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOS
Max. Resolutions: 4 @ 2560 x 1920 and 1 @ 1440 x 1440
Min. Illumination:
- Color: 0.005 Lux @ f 1.2, AGC on
- B&W: 0.002 Lux @ f 1.2, AGC on | 0 Lux with IR
Angle Adjustment: Pan: 0° to 350°, tilt: 0° to 90°, rotate: -90° to 90°
Human and vehicle target classification based on deep learning for up to 4 channels
Water and dust resistant (IP67) and vandal proof (IK10)
Audio and alarm interfaces available

Show more Show less

Details

Image Sensors: Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOS
Max. Resolutions: 4 @ 2560 x 1920 and 1 @ 1440 x 1440
Min. Illumination:
- Color: 0.005 Lux @ f 1.2, AGC on
- B&W: 0.002 Lux @ f 1.2, AGC on | 0 Lux with IR
Angle Adjustment: Pan: 0° to 350°, tilt: 0° to 90°, rotate: -90° to 90°
Human and vehicle target classification based on deep learning for up to 4 channels
Water and dust resistant (IP67) and vandal proof (IK10)
Audio and alarm interfaces available

Specs

More Information
Specifications	Power: 12 V DC ± 20%, 1.8 A, max. 21.6 W; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.58 A to 0.43 A, max. 25 W Dimensions: Ø11.42 × 5.8" (Ø290 × 148 mm) Shipping Dimensions: 17.8 × 15.47 × 15.16" (453 × 393 × 385 mm) Weight: Approx. 10.36 lb. (4.7 kg) Shipping Weight: Approx. 17.63 lb. (8.0 kg) Storage Conditions: -40° to 140° F (-40° to 60° C). Humidity 95% or less (non-condensing) Startup and Operating Conditions: -40° to 140° F (-40° to 60° C). Humidity 95% or less (non-condensing) General Functions: Heartbeat, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding
SKU	LTCMIP7553W5-SZ8
Camera Technology	IP / Network
Camera Series	Platinum Series
Camera Housing	Other
Camera Resolution	5.0MP

Downloads
