Platinum Starlight HD-TVI Dome Camera, 2.1MP Previous Platinum Starlight HD-TVI Dome Camera, 2.1MP
main product photo

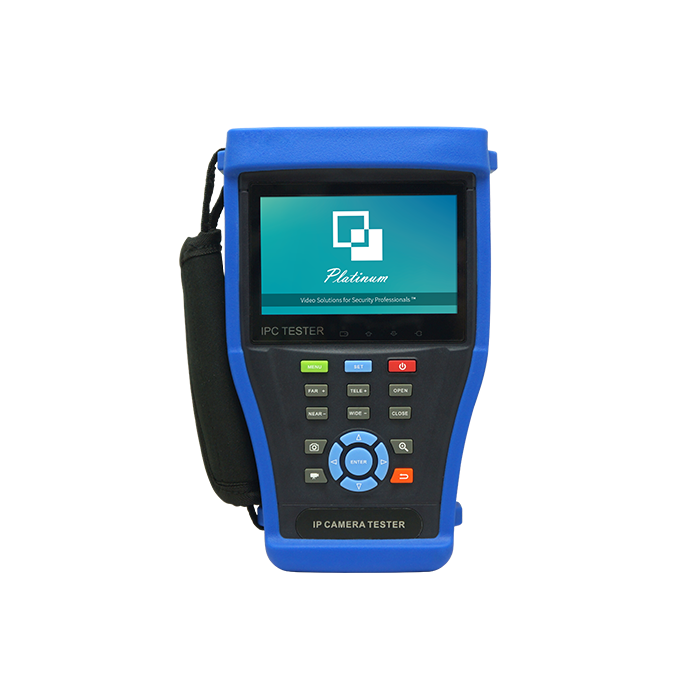

4.3-Inch Multi-Purpose Camera Tester

Be the first to review this product
Call for Price
In stock
SKU
LTA-X48M
Out of Stock
Show more Show less
Wish List Compare

The 960 x 540 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. The combination of touch screen and key buttons makes the IP camera tester very user-friendly. The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING, and IP address searching. You can use the blue cable tracer to locate individual connected cables from a bundle of cables. Test LAN cable for proper connection termination. Other functions include providing 24 W PoE power to your camera, HDMI in and out, CVBS loop test, testing IP and analog at the same time, LED Flashlight, 12 V DC, 2 A power output and much more. Its portable, user-friendly design and many functions make the IP tester an essential tool for installers & technicians.

  • Supports 8 MP IP, 5 MP TVI, 4 MP CVI, 4 MP AHD and Analog camera test
  • 4.3-inch touchscreen, 960 x 540 resolution
  • H.265 / H.264, 4K video display via mainstream
  • HDMI input / output, support 1080p
  • 5 - 1 Multi-purpose Camera Tester
  • Built in Wi-Fi, create Wi-Fi hotspot
More Information
Specifications
Parameters
Display 4.3 inch IPS touch screen , resolution 960 x 540
Network Port 10/100 Mbps auto adapt,RJ45
Wi-Fi Built in Wi-Fi, speeds150 Mbps, display wireless camera image
IP Camera Type LTS, ONVIF, ONVIF PTZ
Rapid ONVIF Search camera quickly, auto log in and display image from the camera, activate LTS camera
TVI / CVI / AHD Test
TVI video signal test 1 channel TVI input (BNC interface), supports resolutions 720p @ 25, 30, 50, 60 fps and 1080p  @ 25, 30 fps, 5 MP TVI
CVI video signal test 1 channel CVI input (BNC interface), supports resolutions 720p @ 25, 30, 50, 60 fps and 1080p  @ 25, 30 fps, 4 MP CVI
AHD video signal test 1 channel AHD input (BNC interface), supports resolutions 720p @ 25, 30 fps and 1080p 25, 30 fps, 4 MP AHD
Analog video test 1 channel BNC Input & 1 channel BNC Output, NTSC / PAL (Auto adapt)
Zoom Image 4x zoom, to enlarge image, screen snapshot, record, save, view and record and play back
HDMI output 1 channel HDMI output, supports up to 1080p
12 V / 2 A power output Output 12 V DC / 2 A power out, temporarily power supply for camera
5 V / 2 A power output USB 5 V, 2 A power output, as a power bank
PoE power output 48 V PoE power output, Max power 24 W
Audio test 1 channel audio signal input and 1 channel audio signal output to connect headphones
Color bar generator Output one channel PAL / NTSC color bar video signal for testing monitor or video cable
UTP Cable tester Test UTP cable connection status and display on the screen. Read the number on the screen
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
Network test Trace route, Link monitor, DHCP server, port flashing, Ping test
PoE Test Measurement POE switch or PSE power supply voltage and cable connection status
General
External power supply 12 V DC, 2 A
Battery Built-in 7.4 V Lithium polymer battery, 5,000 mAh
Charging After charging 5 - 6 hours, normal operating time is 10 hours
Setting IPS touch screen, OSD menu, select your desired language
Auto Off 1 - 30 mins
Operating Temperature 14° - 122° F (-10° - 50 °C)
Operating Humidity 30 - 90%
Dimensions 8.5 x 5.0 x 2.1 in.  (215 x 127 x 53 mm)
Weight 1.80 Ib  (0.82 kg)
SKU LTA-X48M
HC-2BL-F28 & 36-SBL User Manual (6.18 MB)
