Platinum 4 MP Vari-focal Bullet IP Camera Previous Platinum 4 MP Vari-focal Bullet IP Camera
main product photo

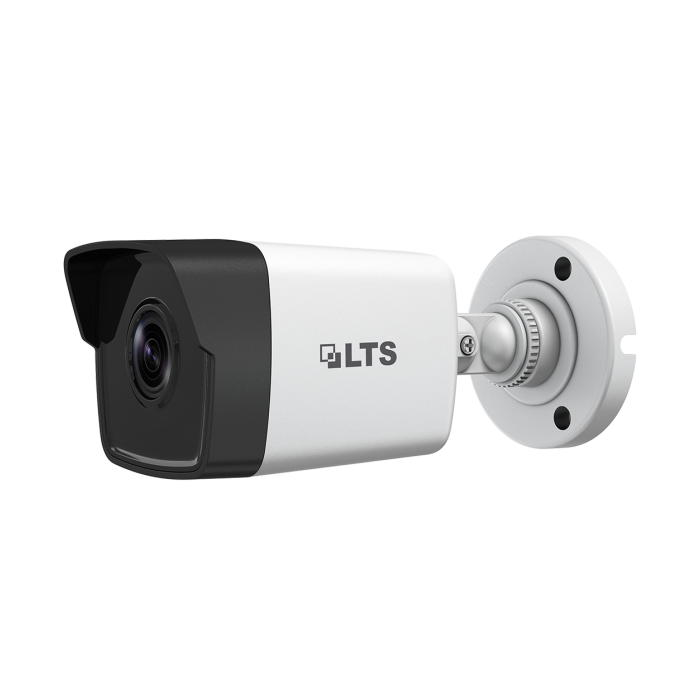

Platinum 4 MP Fixed Bullet IP Camera

Be the first to review this product
Call for Price
In stock
SKU
LTCMIP8042W-28MA
In Stock
Show more Show less
Wish List Compare
  • High quality imaging with 4 MP resolution
  • High efficiency H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67)
  • Matrix 2.0: Advanced infrared technology with extended IR range
  • Built-in microphone for real-time audio security
More Information
Specifications
Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @ (f2.0, AGC on), B&W: 0 Lux with IR
Shutter Speed 1/3 to 1/100, 000 sec.
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Focal Length & Field of View 2.8 mm: Horizontal 98.0°, vertical 53.1°, diagonal 114.7°
Lens Mount M12
Focus Fixed
Aperture f2.0
Illuminator
IR Wavelength 850 nm
IR Range Up to 98 ft (30 m)
Video
Max. Resolution 2560 × 1440
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.264 / H.265
Sub-stream: H.264 / H.265 / MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User / Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage NAS (NFS, SMB/CIFS), ANR
Web Browsers Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Imaging
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day / Night Switch Auto, Schedule, Day, Night
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 x RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, supports MicroSD cards up to 256 GB
Built-in Microphone Yes
Hardware Reset Yes
Event Types
Basic Events Motion detection, video tampering alarm, exceptions / anomalies
General
Linkage Method Upload to FTP, notify surveillance center, send email also supports: upload to memory card, trigger recording, trigger capture
Camera Materials Metal & Plastic
Camera Dimensions 7.0 × 2.6 × 2.7"  (177.6 × 66.2 × 67.8 mm)
Package Dimensions 8.5 × 4.8 × 4.6"  (216 × 121 × 118 mm)
Camera Weight Approx. 0.6 lb (270 g)
Package Weight Approx. 1.1 lb (490 g)
Storage Conditions -22° to 140° F (-30° to 60° C). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -22° to 140° F (-30° to 60° C). Humidity: 95% or less (non-condensing)
General Functions Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W
PoE: (802.3 af, 36 to 57 V), 0.2 to 0.15 A, max. 6.5 W
Power Supply 12 VDC ± 25%
PoE: 802.3af, Class 3
Power Interface Ø 5.5 mm coaxial power plug
Certifications
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environmental CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protections IP67 (IEC 60529-2013)
SKU LTCMIP8042W-28MA
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 4.0MP
Quick Start Guide (1.64 MB)
Quick Installation Guide (865.11 kB)
CMIP8042W-28MA Spec sheet (680.86 kB)
