Platinum Matrix Varifocal Turret Network IP Camera 4MP Previous Platinum Matrix Varifocal Turret Network IP Camera 4MP
main product photo

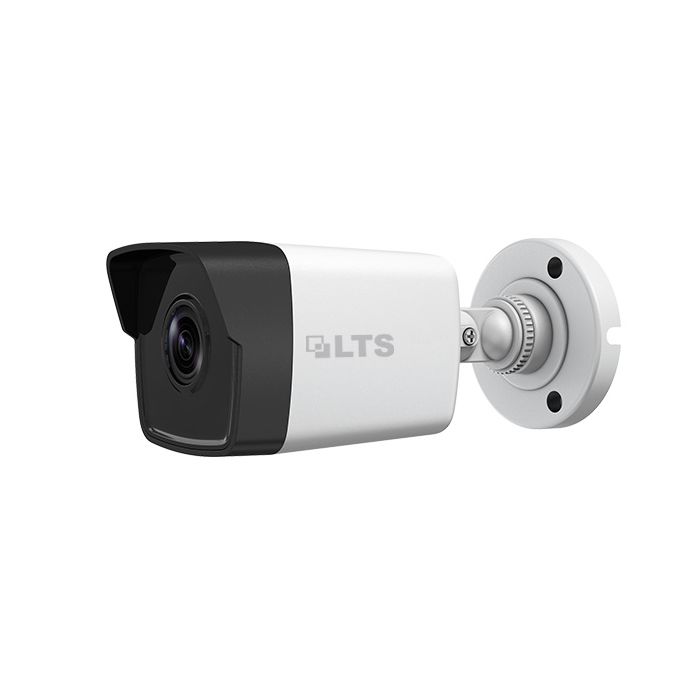

Platinum Mini Bullet Network IP Camera 4MP - 2.8mm

Be the first to review this product
Call for Price
Out of stock
SKU
CMIP8042-28
Out of Stock
Show more Show less
Wish List Compare
3yr  ovnif   UL Listed
  • 4MP High Definition
  • Up to 2560x1440@20fps
  • 2.8mm Fixed Lens
  • H.265, H.265+, H.264, H.264+ Ready
  • DWDR
  • IP67
  • DC 12V, PoE
  • Metal Housing
More Information
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Angle Adjustment Pan: 0° to 360°, tilt: 0°to 180°, rotation:0° to 360°
Compression Standard
Video Compression

Main stream: H. 265/H.264
Sub stream: H.265/H. 264/MJPEG
H.264 / H.264 Zip+ Type Base Profile / Main Profile / High Profile / Main Stream Supports
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)                      60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI 1 fixed region for main stream and sub-stream
Day/Night Switch Auto / Scheduled
Network
Network Storage NAS (NFS,SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Simultaneous Live View Up to 6 channels
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
General
Working Temperature
/Humidity 		 -22 °F ~ 122°F (-30 °C ~50 °C)
Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
IR Range Approx. 100ft (30 meters)
Weather Proof Ratings IP67
Dimensions Φ 2.7"× 6.8" (Φ 70 × 172.7 mm)
Weight 0.62lbs (500g)
SKU CMIP8042-28
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 4MP
User Manual (3.32 MB)
Quick Start Guide (1.54 MB)
Akuvox C313 Series Indoor Monitor User Manual V3.pdf (698.61 kB)
