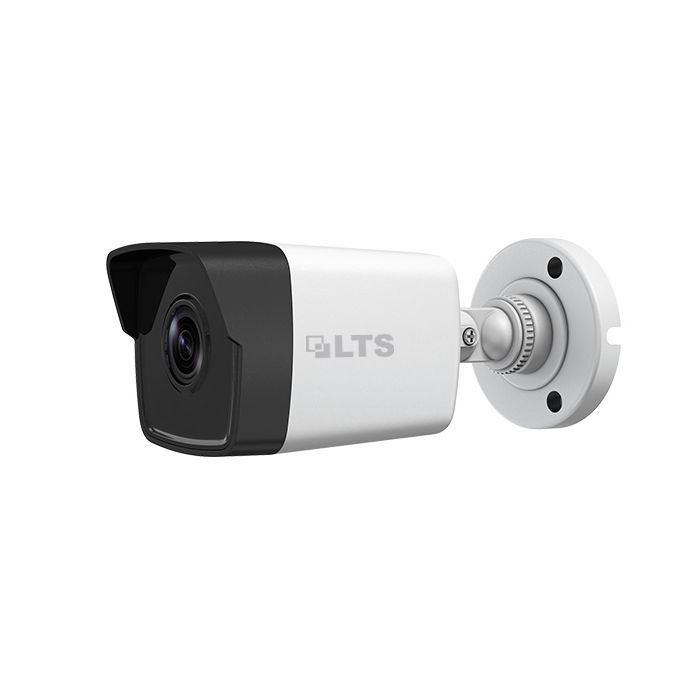

Platinum Mini Bullet Network IP Camera 4MP - 2.8mm

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @ (F2.0, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

DWDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 2.8 mm

Aperture

F2.0

FOV

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

Lens Mount

M12

Illuminator

IR Range

Up to 98ft(30 m)

Wavelength

850 nm

Video

Max. Resolution

2560 × 1440

Main Stream

50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.264+/H.265/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-Set

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP

address conflict, illegal login, HDD full, HDD error)

Linkage Method

Upload to FTP/memory card, notify surveillance center, send email

Region of Interest

1 fixed region for main stream


Image Enhancement

BLC, HLC, 3D DNR

Image Setting

Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client

software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

S/N Ratio

> 50dB

Network

Network Storage

microSD/SDHC/SDXC card (256GB) (supports image and logs storage only), local

storage and ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,

IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Security

Password protection, complicated password, IP address filter, Watermark, HTTPS

encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users, 3 levels: administrator, operator and user

Web Browser

IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 256GB (supports image and logs storage only)

General

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log

Reset

Reset via reset button on camera body, web browser and client software

Startup and Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af,

class 3)

Power Consumption and Current

12 VDC, 0.4 A, max. 4.8 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.8 W

Material

Front cover: metal, back cover: plastic

Dimensions

Camera: 66.2 mm × 67.8 mm × 177.6 mm (2.6" × 2.7" × 7")

With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")

Weight

Camera: approx. 280 g (0.6 lb.)

With package: approx. 506 g (1.1 lb.)

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,

EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:

2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am

1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IP67 (IEC 60529-2013)
