Platinum HD-TVI Turret Camera 2.1MP - 2.8mm Previous Platinum HD-TVI Turret Camera 2.1MP - 2.8mm
main product photo

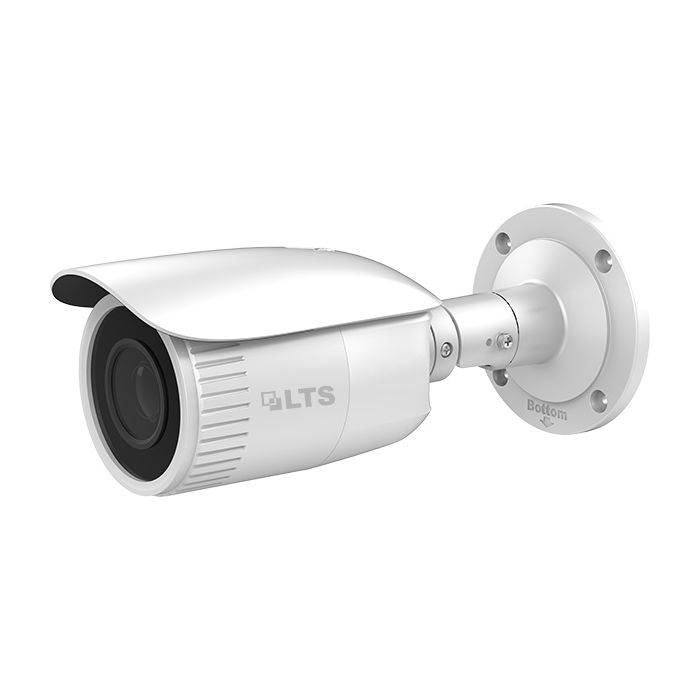

Platinum VF Motorized Bullet IP Camera 4MP

Be the first to review this product
Call for Price
In stock
SKU
LTCMIP8043W-MZ
In Stock
Show more Show less
Wish List Compare
3yr  ovnif  UL Listed
  • 4MP High Definition
  • Up to 2560x1440@20fps
  • 2.8-12mm Varifocal Motorized Lens
  • IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67
  • DC 12V, PoE
  • Metal Housing
More Information
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0 .018Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s, support slow shutter
Lens 2.8 to 12 mm, Horizontal view: 98° to 28°, Vertical view: 51° to 16°, Diagonal view: 115° to 32°
Lens Mount Φ14
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Compression Standard
Video Compression

Main stream: H. 265/H.264
Sub stream: H.265/H. 264/MJPEG
H.264 / H.264 Zip+ Type Base Profile / Main Profile / High Profile / Main Stream Supports
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream

50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)
60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI 1 fixed region for main stream and sub-stream
Day/Night Switch Auto / Scheduled
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Simultaneous Live View Up to 6 channels
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
General
Working Temperature
/Humidity 		 -22°F ~ +140°F (-30°C ~ 60°C)
Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption Max. 11W
IR Range Approx. 100ft (30 meters)
Weather Proof Ratings IP67
Dimensions 4.1" × 4.1" × 5.7" (105 mm × 105 mm × 145 mm)
Weight 2.3lb. (1035g)
SKU LTCMIP8043W-MZ
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 4MP
Spec Sheet (1.81 MB)
Spec Sheet LTDHIP3542W-28ISMLC (1.89 MB)
