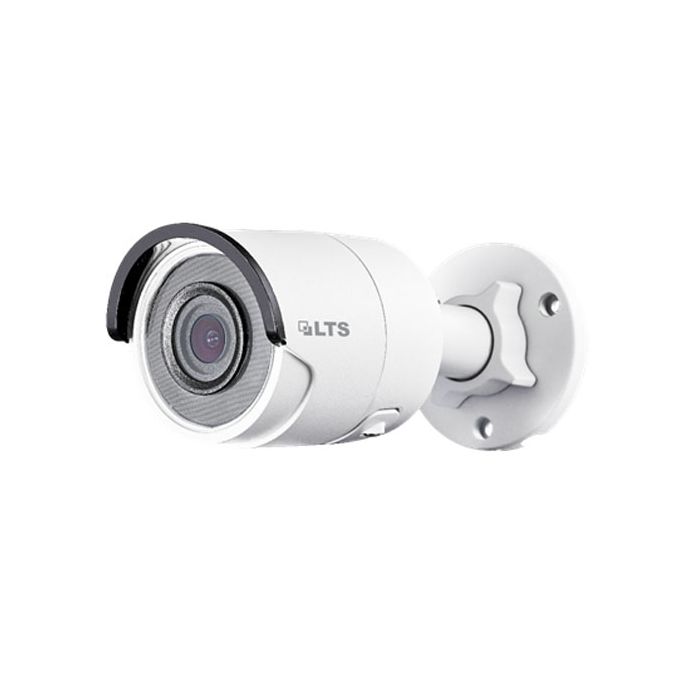

Platinum Network Mini Bullet IP Camera - 4MP

Be the first to review this product

Call for Price

In stock

SKU

CMIP8342W-M

Out of Stock

4MP, 2560x1520@30fps, 4mm, 0.018 Lux @ F1.6, Matrix IR 2.0, IR Range up to 100 feet, H.265, H.265+, H.264, H.264+ Ready, True WDR 120dB, IP67, MicroSD Slot up to 128GB, DC 12V, PoE, VCA

4MP High Definition
Up to 2560x1520@30fps
4mm Fixed Lens
0.018 Lux @ F1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67
MicroSD Slot up to 128GB
DC 12V, PoE
VCA – Line Crossing, Intrusion Detection and Face Detection

Show more Show less

Details

4MP High Definition
Up to 2560x1520@30fps
4mm Fixed Lens
0.018 Lux @ F1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67
MicroSD Slot up to 128GB
DC 12V, PoE
VCA – Line Crossing, Intrusion Detection and Face Detection

Specs

More Information

Specifications

Camera
Image Sensor	1/3” sensor
Min. Illumination	Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	4mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
Lens Mount	M12
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	True WDR 120dB
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Bit Rate	256 Kbps to 16 Mbps
Dual stream	Yes
Max. Resolution	2688 × 1520
Frame Rate	60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720) 50Hz: 12.5fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage	NAS ( iSCSI optional)
Alarm Trigger	Motion detection.tampering alarm
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility	ONVIF, PSIA, CGI
General functionalities	Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
General
Working Temperature /Humidity	-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%, PoE (802.3af)
Power Consumption	Max. 6W
Ingress protection level	IP67
IR Range	up to 30m
Dimension	70 mm × 155 mm (Φ 2.8" × 6.1")
Weight	410 g (0.9 lb.)
