Platinum Network Mini Bullet IP Camera - 4MP Previous Platinum Network Mini Bullet IP Camera - 4MP
main product photo

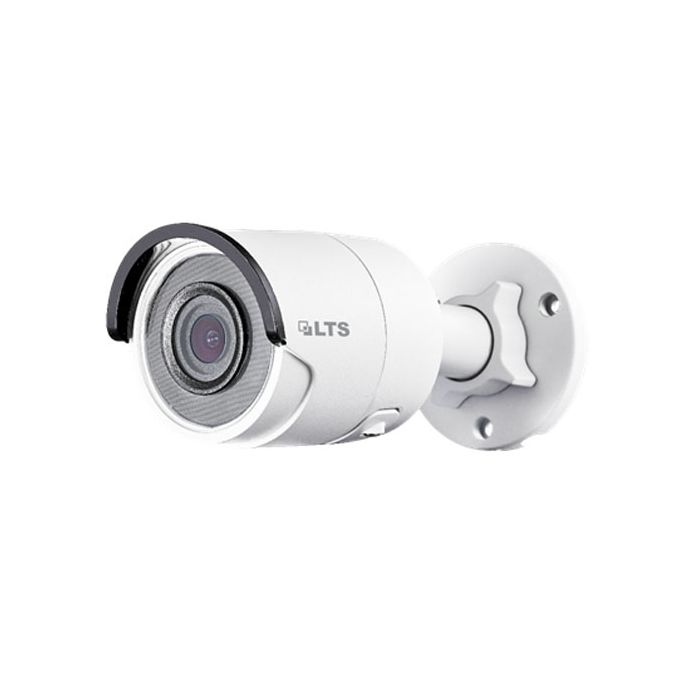

Platinum Network Mini Bullet IP Camera - 6MP

Be the first to review this product
Call for Price
Out of stock
SKU
LTCMIP8362W-28M
Out of Stock
Show more Show less
Wish List Compare
  • 6MP High Definition
  • 3072x2048@20fps
  • 2.8mm Fixed Lens
  • 0.028 Lux @ F2.0
  • Matrix IR 2.0, IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
  • VCA – Line Crossing, Intrusion Detection and Face Detection
More Information
Specifications
Camera
Image Sensor  1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens

2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount M12
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range True WDR 120dB
Compression Standard
Video Compression

Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Bit Rate 256 Kbps to 16 Mbps
Dual stream Yes
Max. Resolution 2688 × 1520
Frame Rate 60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
50Hz: 12.5fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage NAS ( iSCSI optional)
Alarm Trigger Motion detection.tampering alarm
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface 1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity		 -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Power Supply DC12V ± 25%, PoE (802.3af)
Power Consumption Max. 6W
Ingress protection level IP67
Dimension  70 mm × 155 mm (Φ 2.8" × 6.1")
Weight 410 g (0.9 lb.)
SKU LTCMIP8362W-28M
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 6MP
Spec Sheet (902.91 kB)
