Platinum 2 MP Fixed Turret IP Camera Previous Platinum 2 MP Fixed Turret IP Camera
main product photo

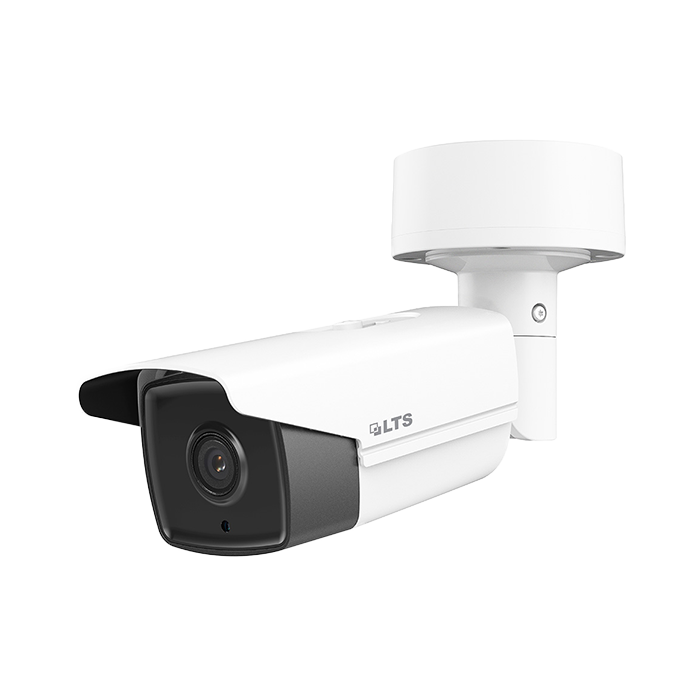

Platinum 4 MP Fixed Lens Matrix IR Bullet IP Camera

Be the first to review this product
Call for Price
In stock
SKU
LTCMIP9342W-28M
In Stock
Show more Show less
Wish List Compare
  • 4 MP High Definition
  • Up to 2688 x 1520 @ 30 fps
  • 2.8 mm Fixed Lens
  • 0.018 Lux @ f 1.6
  • Matrix IR 2.0, IR Range up to 165 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120 dB
  • IP67
  • MicroSD Slot up to 128 GB
  • 12V DC, PoE
  • Junction Box Included
More Information
Specifications
Camera
Image Sensor 1/3" Progres s ive S can CMOS
Min. Illumination 0.018 Lux @  f 1.6, AGC on; 0 Lux with IR
Shutter Speed 1/3 to 1/100,000 sec.
Lens & FOV 2.8 mm:
Horizontal FOV:98°
Vertical FOV: 55°
Diagonal FOV: 114°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120 dB
Angle Adjustment Pan:0° ~ 360°, T ilt: 0° ~ 100°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.26 5/H.264
Sub stream: H.265/H.26 4/MJPEG
Third stream: H.26 5/H.264
H.264 Type Main Profile / High Profile
H.264 Zip+ Supported
H.265 Main Profile
H.265+ Supported
Video Bit Rate 32 Kbps ~ 16 Mbps
Max. Resolution 2560 × 1440
Frame Rates

50 Hz:
20 fps (3840 × 2160)
25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:
20 fps (3840 × 2160)
30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50 Hz: 25 fps (1280×720, 640×360, 352×288)
60 Hz: 30 fps (1280×720, 640×360, 352×240)
Behavioral Analysis Line crossing detection, intrusion detection
Face Detection Yes
Network
Network Storage Support for MicroSD / SDHC / SDXC cards up to 128 GB; local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Triggers

Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General

One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 x RJ45 10/100 Mbps Ethernet port
Reset Yes
General
Operating Conditions -22 ° to 140° F (-30° to 60° C)
Humidity 95% or less (non-condensing)
Power Supply 12V DC ± 25%, PoE (802.3af)
Power Consumption 12V DC, 0.6 A, max. 7.5 W
IR Range Approx. 165 ft (50 meters)
Protection Ratings IP67
Dimensions Φ4.13″ × 11.80″ (Φ105 × 299.7 mm)
Weight 2.7 lbs (1,200 g)
SKU LTCMIP9342W-28M
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 4MP
LTCMIP9342W-28M User Manual (3.25 MB)
LTCMIP9342W-28M Spec Sheet (1.22 MB)
LTCMIP9342W-28M QSG (1.30 MB)
