Platinum 4 MP Fixed Lens Matrix IR Bullet IP Camera Previous Platinum 4 MP Fixed Lens Matrix IR Bullet IP Camera

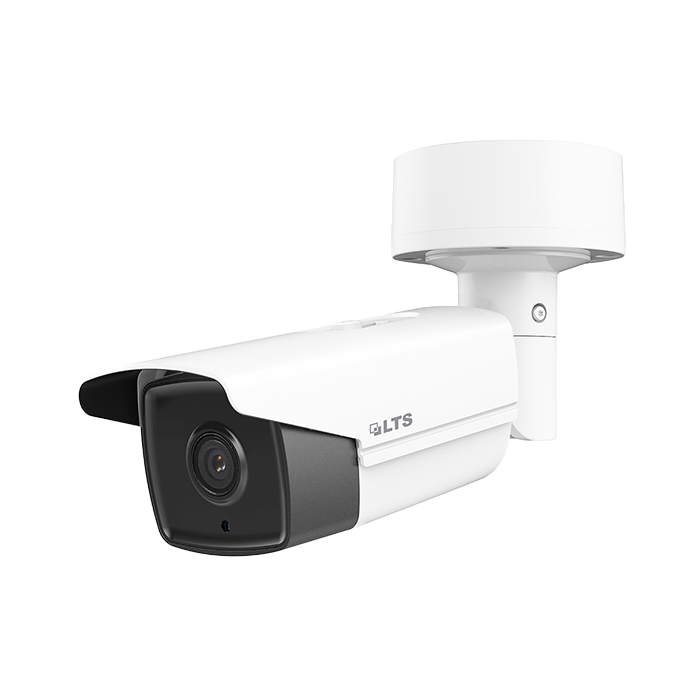

main product photo

Platinum Matrix IR Bullet Network IP Camera 4MP - 4mm

Be the first to review this product
Call for Price
Out of stock
SKU
LTCMIP9342W-M
In Stock
Show more Show less
Wish List Compare
3yr  ovnif  ul listed
  • 4MP High Definition
  • Up to 2688x1520@30fps
  • 4mm Fixed Lens
  • 0.018 Lux @ F1.6
  • Matrix IR 2.0, IR Range up to 165 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
  • Junction Box Included
More Information
Specifications
Camera
Image Sensor 1/3" Progres s ive S can CMOS
Min. Illumination 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000s
Lens 4mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan:0° ~ 360°, T ilt: 0° ~ 100°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.26 5/H.264
Sub stream: H.265/H.26 4/MJPEG
Third stream: H.26 5/H.264
H.264 Type Main Profile / High Profile
H.264 Zip+ Support
H.265 Main Profile
H.265+ Support
Video Bit Rate 32 Kbps ~ 16 Mbps
Max. Resolution 2560 × 1440
Frame Rate

50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240)
Behavioral Analysis Line crossing detection, intrusion detection
Face Detection Yes
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger

Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General

One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140°F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af)
Power Consumption DC 12V, 0.6A, max. 7.5W
IR Range Approx. 165ft(50 meters)
Weather Proof Ratings IP67
Dimensions Φ4.13″ × 11.80″ (Φ105 × 299.7 mm)
Weight 2.7lbs (1200 g)
SKU LTCMIP9342W-M
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 4MP
Quick Start Guide (1.30 MB)
User Manual (3.25 MB)
QSG (1.22 MB)
