Platinum VF Motorized Bullet IP Camera 4MP Previous Platinum VF Motorized Bullet IP Camera 4MP
main product photo

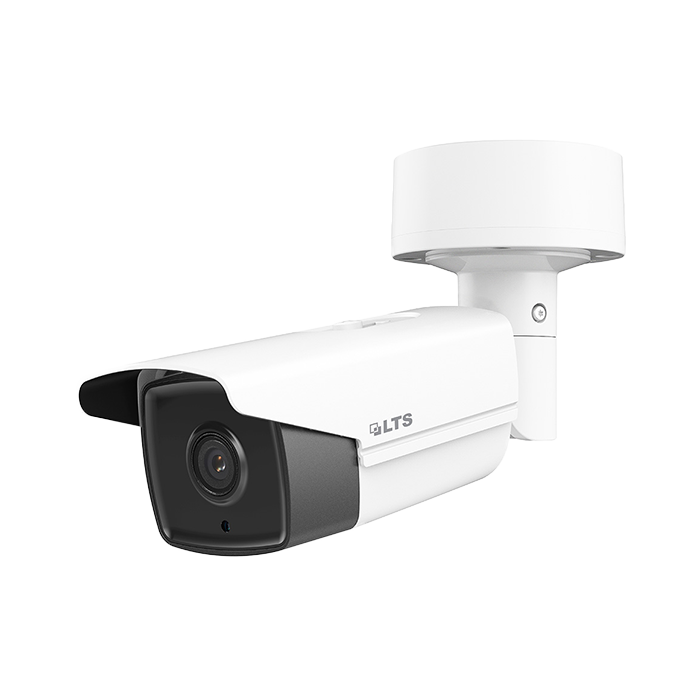

Platinum Matrix IR Bullet Network IP Camera 4K - 2.8mm

Be the first to review this product
Call for Price
In stock
SKU
LTCMIP9382NW-28M
Out of Stock
Show more Show less
Wish List Compare
3yr  ovnif  ul listed
  • 8MP High Definition
  • Up to 3840x2160@15fps
  • 2.8mm Fixed Lens
  • Matrix IR 2.0, IR Range up to 165 feet
  • H.265, H.265+ Ready
  • True WDR 120dB
  • IP67
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
  • UL Listed
  • Junction Box Included
More Information
Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.028 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8 mm: horizontal FOV:102°, vertical FOV: 53°, diagonal FOV: 124°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
Compression Standard
Video Compression

Main stream: H.26 5/H.264
Sub stream: H.265/H.26 4/MJPEG
Third stream: H.26 5/H.264
H.264 Type Main Profile / High Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Max. Resolution 3840 × 2160
Frame Rate

50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 60Hz: 30fps (640 × 360, 352 × 240) 50Hz: 25fps (1280 ×720)
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140°F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af)
IR Range Approx. 165ft (50m)
Weather Proof Ratings IP67
Dimensions Φ4.13″ × 11.80″ (Φ105 × 299.7 mm)
Weight 2.7lbs (1200 g)
Video
SKU LTCMIP9382NW-28M
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 4K
Quick Start Guide (1.30 MB)
User Manual (3.25 MB)
Spec Sheet (1.22 MB)
