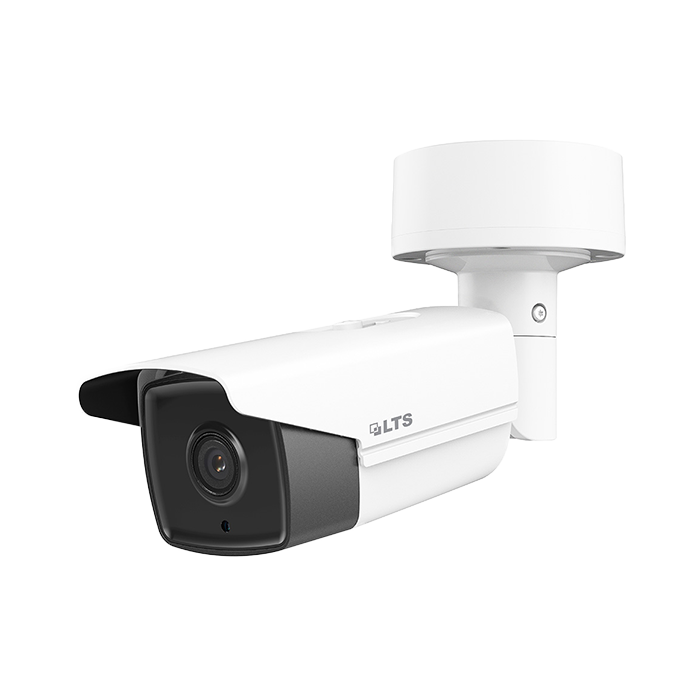

Platinum Matrix IR Bullet Network IP Camera 4K - 4mm

Be the first to review this product

Call for Price

In stock

SKU

LTCMIP9382NW-M

In Stock

Platinum, Bullet, IP Camera, 8MP, 4mm, True WDR, Matrix IR 2.0, Junction Box Included

Junction Box Included
8MP High Definition
Up to 3840x2160@15fps
4mm Fixed Lens
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67
MicroSD Slot up to 128GB
DC 12V, PoE
UL Listed

Show more Show less

Details

Junction Box Included
8MP High Definition
Up to 3840x2160@15fps
4mm Fixed Lens
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67
MicroSD Slot up to 128GB
DC 12V, PoE
UL Listed

Specs

More Information

Specifications

Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	Color: 0.028 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8 mm: horizontal FOV:102°, vertical FOV: 53°, diagonal FOV: 124°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Compression Standard
Video Compression	Main stream: H.26 5/H.264 Sub stream: H.265/H.26 4/MJPEG Third stream: H.26 5/H.264
H.264 Type	Main Profile / High Profile
Video Bit Rate	32 Kbps ~ 16 Mbps
Max. Resolution	3840 × 2160
Frame Rate	50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	60Hz: 30fps (640 × 360, 352 × 240) 50Hz: 25fps (1280 ×720)
Others	Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature /Humidity	-22 °F ~ 140°F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%, PoE (802.3af)
IR Range	Approx. 165ft (50m)
Weather Proof Ratings	IP67
Dimensions	Φ4.13″ × 11.80″ (Φ105 × 299.7 mm)
Weight	2.7lbs (1200 g)
