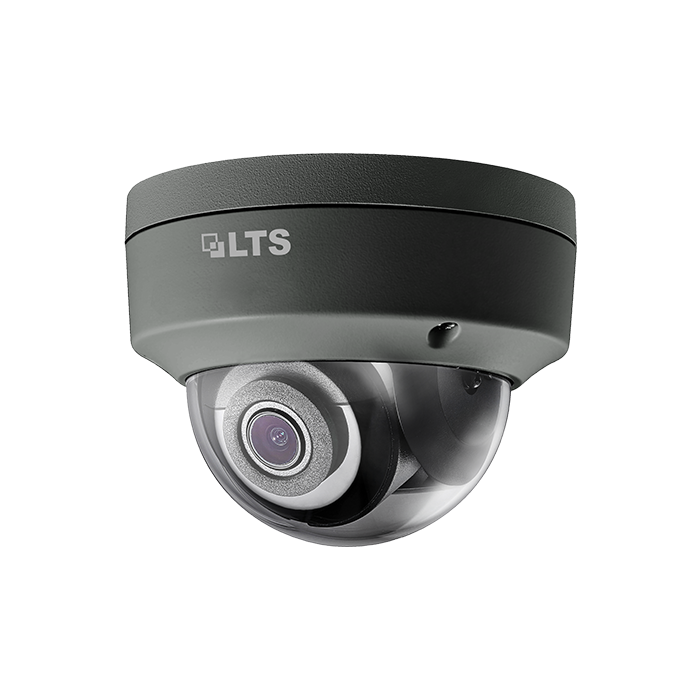

Platinum Network Vandal Dome IP 4MP - 2.8mm

Be the first to review this product

Call for Price

In stock

SKU

LTCMIP7342WB-28M

In Stock

4MP High Definition, Up to 2560x1440@30fps, 2.8mm Fixed Lens, Matrix IR 2.0, IR Range up to 100ft, H.265, H.265+, H.264, H.264+ Ready, True WDR 120dB, IP67 & IK10, MicroSD Slot up to 128GB, DC 12V, PoE, VCA - Line Crossing, Intrusion and Face Detection

4MP High Definition
Up to 2560x1440@30fps
2.8mm Fixed Lens
0.018 Lux @ F1.6
Matrix IR 2.0, IR Range up to 100ft
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67 & IK10
MicroSD Slot up to 128GB
DC 12V, PoE
VCA - Line Crossing, Intrusion Detection, Face Detection

Show more Show less

Details

4MP High Definition
Up to 2560x1440@30fps
2.8mm Fixed Lens
0.018 Lux @ F1.6
Matrix IR 2.0, IR Range up to 100ft
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67 & IK10
MicroSD Slot up to 128GB
DC 12V, PoE
VCA - Line Crossing, Intrusion Detection, Face Detection

Specs

More Information

Specifications

Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Auto-Iris	No
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
Wide Dynamic Range	120dB
3-Axis Adjustment	Pan: 0° to 355°, Tilt: 0° to 75°, Rotation:0° to 355°
Lens
Focal Length	2.8mm
Aperture	F1.6
Focus	Manual
Field of View	2.8mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
Lens Mount	M12
IR
IR Range	Up to 98ft (30m)
Wavelength	850nm
Compression Standard
Video Compression	Mainstream: H. 265/H.264 Substream: H.265/H.264/MJPEG Thirdstream: H.265/H.264
H.264	Main Profile/High Profile
H.264+	Mainstream and substream support
H.265	Main Profile
H.265+	Mainstream and substream support
Video Bit Rate	256 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis	Line crossing and intrusion detection
Face Detection	Yes
Region of Interest	1 fixed region for mainstream and substream
Max. Resolution	2688x1520
Mainstream	50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Substream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Thirdstream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping	No
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128GB), local storage and NAS (NFS/ SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (Profile S, Profile G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Video Output	No
Onboard Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128GB
SVC	H.264 and H.265 encoding
Reset Button	Yes
General
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.5A, max. 6W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Protection Level	IP67, IK10 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Metal
Dimensions	Φ 111 × 82.4 mm (Φ 4.4" × 3.2")
Weight	Approx. 610 g (1.3 lb.)
