Platinum 256-Channel Enterprise Level NVR Previous Platinum 256-Channel Enterprise Level NVR
main product photo

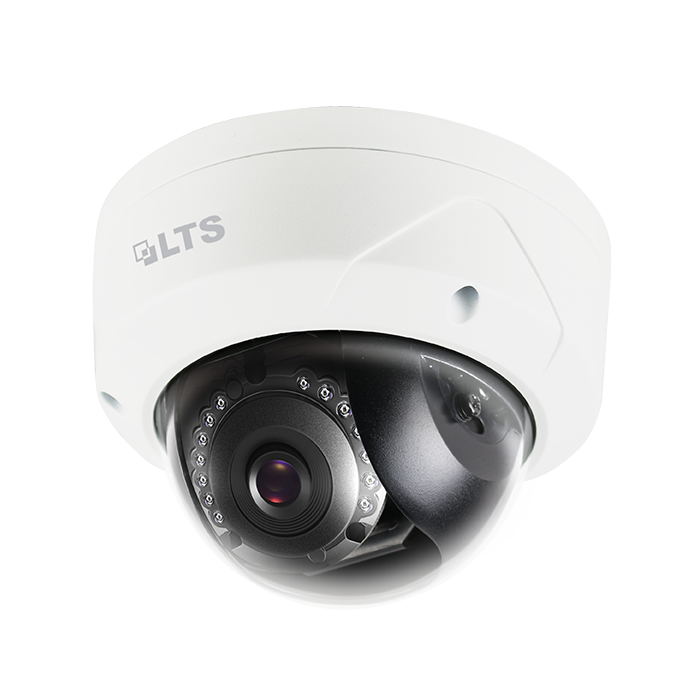

Platinum 2.1 MP Fixed Lens Dome IP Camera

Be the first to review this product
Call for Price
Out of stock
SKU
LTCMIP7422N-28M
Out of Stock
Show more Show less
Wish List Compare
  • 2.1 MP High Definition
  • 12 IR LED up to 70 ft
  • 3D DNR, BLC, DWDR
  • 3-Axis
  • IP66, Vandal-proof
  • 12 V DC, PoE
More Information
Specifications
Camera
Image Sensor 1/2.8" Progres s ive S can CMOS
Min. Illumination 0.01 Lux @ f 1.2, AGC on; 0 Lux with IR
Shutter Speed 1/3 to 1/10,000 sec.
Lens 2.8 mm
Lens Mount M12
Day &Night IR cut fi lter with auto s witch
DNR 3D DNR
Wide Dynamic Range Digital WDR
Swivel and Tilt Swivel: -9 0° ~ 90°, Til t: 0 ° ~ 75°
Compression Standard
Video Compression H.264 / MJ PEG
H.264 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Dual streams Supported
Imaging
Max. Resolution 1920 × 1080
Frame Rates 60 Hz: 30 fps (1920 × 1080), 30 fps (1280 × 960),
30 fps (1280 × 720)
50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960),
25 fps (1280 × 720)
Image Settings Rotate Mode, Saturation, Brightness , Contrast, Sharpness adjustable by client software or web browser
BLC Supported, zone configurable
ROI Codec Supported
Network
Network Storage NAS (Support NFS, SMB / CIFS)
Alarm Trigger Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols TCP / IP, UDP, ICMP, HTTP, HTTPS , FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS , IPv6, Bonjour
General One- key reset, Flash-prevention, duals tream, mirror, password protection, privacy mask, watermark, IP address fitering, anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PS IA, CGI, IS API
Interface
Communication Interface 1 x RJ45; 10/100 Mbps Ethernet port
On-board Storage Built-in MicroSD / SDHC / SDXC storage for cards up to 128 GB
Reset Yes
General
Operating Conditions - 22° to 140° F (- 30° to 60° C)
Humidity 95% or les s (non- condens ing)
Power Supply 12 V DC ± 10%, PoE (802.3af)
Power Consumption Max. 5 W
IR Range 12 IR LED up to 70 ft
Weather Proof Ratings IP66
Impact Protection IK08
Dimensions Φ 4.4” × 3.2” (Φ 111 × 82.0 mm)
Weight 500 g (1.1 lbs)
SKU LTCMIP7422N-28M
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Dome
Camera Resolution 2.1MP / 1080P
CMIP7422N-28M User Manual (3.45 MB)
CMIP7422N-28M Quick Start Guide (867.01 kB)
CMIP7422N-28M Spec Sheet (636.97 kB)
