Platinum 2 MP 32x IR Speed Dome IP Camera Previous Platinum 2 MP 32x IR Speed Dome IP Camera
main product photo

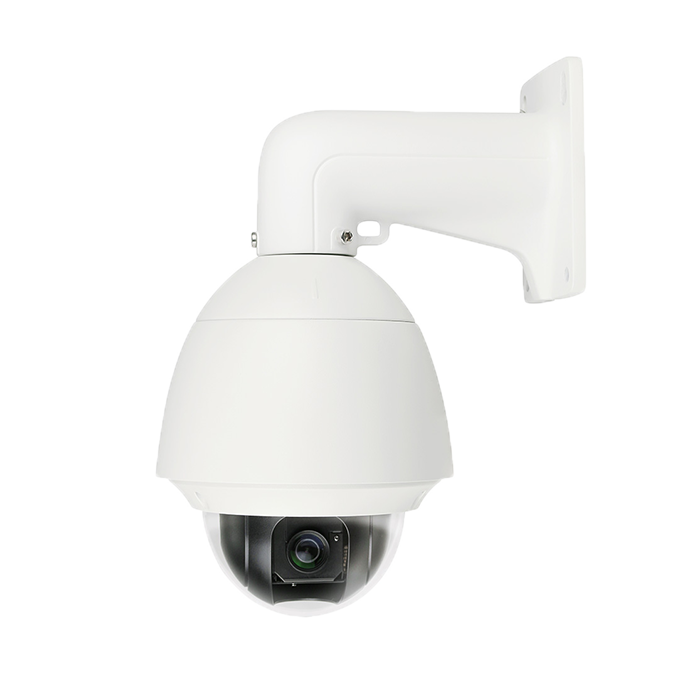

Platinum 1080p PTZ High Speed Dome IP Camera

Be the first to review this product
Call for Price
Out of stock
SKU
PTZIP212X20N
Out of Stock
Show more Show less
Wish List Compare
  • 2.1 MP High Definition
  • 1/2.8” CMOS
  • 1920 x 1080 @ 30 fps
  • 4.7 - 94 mm Lens
  • 20x Optical Zoom
  • TrueDay / Night, 3D-DNR, DWDR, Privacy Masking
  • IP66
  • Outdoor / Indoor
  • 24 V AC, PoE Plus
  • 4" (Φ)
  • Wall Mount Bracket Included

More Information
Specifications
Camera
Image Sensor  1/2.8" Progressive Scan CMOS
Effective Pixel 1920 × 1080
Min. Illumination Color: 0.05 Lux @ f 1.6, AGC on
B&W: 0.01 Lux @ f 1.6, AGC on
White Balance Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp
AGC Auto / Manual
S / N Ratio ≥ 52 dB
Digital Noise Reduction 3D DNR
Backlight compensation BLC
Wide Dynamic Range Digital WDR
Defog Supported
Shutter Speed 1 - 1/10,000 sec.
Day & Night IR Cut Filter
Digital zoom 16x
Focus Mode Auto / Semiautomatic / Manual
Privacy Mask 2 privacy masks programmable
Lens
Focal Length 4.7-94 mm, 20x
Zoom Speed Approx 3 sec. (Optical Wide-Tele)
Angle of View 58.3 - 3.2 degree (Wide-Tele)
Min. Working Distance 10 - 1,000 mm (Wide-Tele)
Aperture Range F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range Pan: 360° endless; Tilt: -2° ~ 90° (Auto Flip )
Pan / Tilt Speed Pan manual speed: 0.1° - 160°/s, Pan preset speed: 160°/s
Tilt manual speed: 0.1° - 120°/s, Tilt preset speed: 120°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Park Action Pattern / Pan scan / Tilt scan / Frame scan / Panorama scan / Random scan
Patrol 8 patrols, up to 32 presets per patrol
Power-off Memory Supported
PTZ Position Display On / Off
Preset Freezing Supported
Local Video and Audio
Alarm input / output 1 input, 0 - 5 V DC / 1 relay output, alarm response actions configurable
Audio input / putput 1 mic / Line in, 2-2.4 V [p-p]; output impedance: 1 K Ω, ± 10% / 1 output, Line level, impedance: 600 Ω
Network
Ethernet 10 Base-T / 100 Base-TX, RJ45 connector
Max. Image Resolution 1920 × 1080
Frame Rates 60 Hz: 30 fps (1920 × 1080), 30 fps (1280 × 720)
50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 720)
Image Compression H.264 / MPEG4
ROI encoding Supports 2 areas with adjustable levels
SVC Supported
Audio Compression G.711u / G.711a / G.726 / MP2L2
Protocols IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 6
Streams Dual Streams
SD Memory Card Built-in MicroSD storage slot for cards up to 64 GB; supports edge recording
User / Host Level Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application Programming Open-ended API; supports Onvif, PSIA and CGI
Web Browsers IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +,  Safari 5.02+
General
Operating Conditions -22° to 149° F (-30° to 65° C)
90% or less
Power Supply 24 V AC / PoE+ (802.3 at), Max 18 W
Ingress Protection Level IP66 (PTZIP212X20), TVS 4,000V lightning protection, surge protection and transient voltage protection
Impact Protection IK08
Dimensions Φ 7.06 × 9.43” (Φ 179.4 × 239.5 mm )
Weight Approx. 4.41 Ibs (2 kg)
SKU PTZIP212X20N
Camera Technology IP / Network
Camera Series Others
Camera Housing PTZ
Camera Resolution 2.1MP / 1080P
PTZIP212X20N Spec Sheet (1.39 MB)
PTZIP212X20N Quick Start Guide (2.33 MB)
