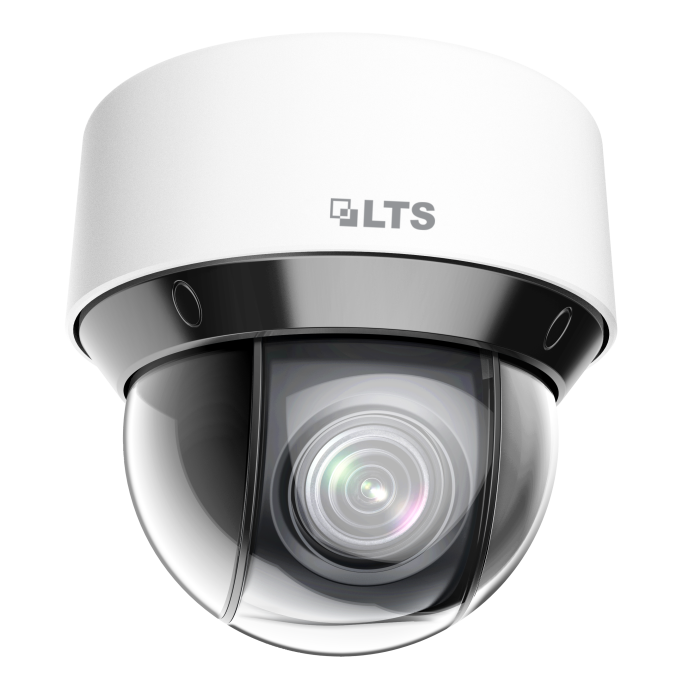

Platinum 2MP 15X Network IR PTZ Camera

Be the first to review this product
Call for Price
In stock
SKU
PTZIP412X15WIR
In Stock
Show more Show less
Wish List Compare


  • 2.1MP High Definition
  • 1/2.8” CMOS
  • 1920X1080P@60fps
  •  5-75mm Lens
  • 15x Optical Zoom
  • 120 dB WDR, 3D DNR, HLC, BLC, Smart IR
  • Up to 164ft(50 m) IR distance
  • 12 VDC & PoE+ (802.3 at, class4)
  • Support H.265+/H.265 video compression
  • 4"(Φ)
  • Wall Mount Bracket (LTB412) & PoE+ (30W) Sold Separately
More Information
Specifications
Camera
Image Sensor  1/2.8" Progressive Scan CMOS
Effective Pixel 1920(H) ×1080(V)
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC Auto / Manual
WDR 120dB
Digital Noise Reduction 3D DNR
Backlight compensation BLC
Shutter Speed 1 ~ 1/30,000s
Day & Night IR Cut Filter
Digital zoom 16X
Focus Mode Auto / Semiautomatic / Manual
Privacy Mask 24 programmable privacy masks
Lens
Focal Length 5 mm to 75 mm, 15× optical
Zoom Speed Approx. 2.4 s (optical lens, wide-tele)
Angle of View

Horizontal field of view: 53.8° to 4.0° (wide-tele)
Vertical field of view: 31.9° to 2.3° (wide-tele)
Diagonal field of view: 60.4° to 4.6°(wide-tele)
Min. Working Distance 10 ~1500mm (Wide-Tele)
Aperture Range F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range Pan: 360° endless; Tilt: -5° ~ 90° (Auto Flip )
Pan / Tilt Speed Pan manual speed: 0.1° ~ 300°/s, Pan preset speed: 350°/s
Tilt manual speed: 0.1° ~ 160°/s, Tilt preset speed: 200°/s
Proportional Zoom Support
Number of Preset 300
Patrol Scan 8 patrols, up to 32 presets per patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Preset freezing Support
Local Video and Audio
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
Audio input / putput 1-ch audio input and 1-ch audio output
Network
Max. Image Resolution 1920×1080
Frame Rate

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Compression Main Stream: H.265+/H.265/H.264+/H.264
ROI encoding Main stream, sub-stream, and third stream respectively support two fixed areas.
SVC Support
Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
API Open-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
SD Memory Card Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
User/Host Level Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures User authentication (ID and PW), Host authentication (MAC address), IP address filtering
IR
IR Distance Up to 164ft(50 m)
IR Intensity Automatically adjusted, depending on the zoom ratio
General
Working Temperature
/Humidity		 -22°F ~149°F (-30°C ~ 65°C)
90% or less
Power Supply 12 VDC and PoE+ (802.3 at, class4), Max.: 18 W (IR light 5 W Max.)
Protection Level IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension

Φ 6.65" × 6.34"(Φ 169 mm × 161 mm )
Weight Approx. 5.40Ibs (2.45Kg)


SKU PTZIP412X15WIR
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing PTZ
Camera Resolution 2.1MP / 1080P
