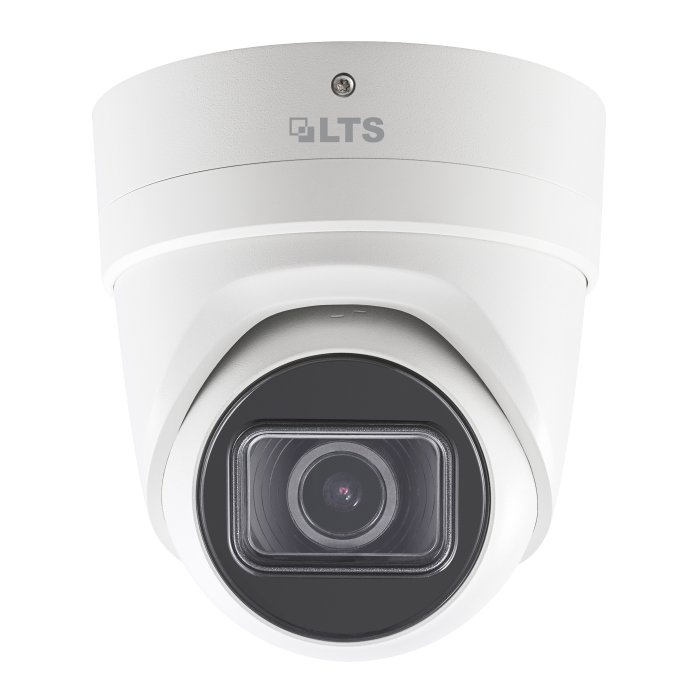

Platinum 8 MP Varifocal Turret IP Camera

Be the first to review this product

Call for Price

Out of stock

SKU

CMIP3883NW-SZ

Out of Stock

Platinum 8 MP / 4K, 3840 x 2160 @ 15 fps, 2.8 - 12 mm, 0.018 Lux @ f 1.6, Matrix IR 2.0, IR Range up to 100 feet, H.265, H.265+, H.264, H.264+ Ready, True WDR 120 dB, IP67 & IK10, Audio I/O, Alarm I/O, 12V DC, PoE, Built-in Junction Box

8 MP / 4K High Definition, Up to 3840 x 2160 @ 15 fps
2.8 - 12 mm Varifocal Motorize Lens with Smart Focus
0.018 Lux @ f 1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120 dB
IP67 & IK10
MicroSD Slot for cards up to 128 GB
Audio I/O, Alarm I/O
DC 12V, PoE
Built-in Junction Box

Show more Show less

Details

8 MP / 4K High Definition, Up to 3840 x 2160 @ 15 fps
2.8 - 12 mm Varifocal Motorize Lens with Smart Focus
0.018 Lux @ f 1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120 dB
IP67 & IK10
MicroSD Slot for cards up to 128 GB
Audio I/O, Alarm I/O
DC 12V, PoE
Built-in Junction Box

Specs

More Information

Specifications

Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	0.01 8 Lux @ f 1.6, AGC on 0 Lux with IR
Shutter Speed	1/3 to 1/10,000 sec.
Lens	2.8 - 12 mm @ f 1.4, Motorized Angle of view：120°- 36°
Lens Mount	Φ 14
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	DWDR
Angle Adjustment	Pan:0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression	Main stream: H.265+ / H.265 / H.264 Zip+ / H.264 Sub stream: H.265+ / H.265 / H.264 Zip+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264 Zip+ / H.264
H.264 Type	Main / High Profile
H.265 Type	Main Profile
Video Bit Rate	256 Kbps to 16 Mbps
Dual Stream	Supported
Max. Resolution	3840 × 2160
Main Stream	60 Hz: 20 fps (2560 x 1920), 30 fps (2048 x 1536), 30 fps (1920 x 1080), 30 fps (1280 x 720) 50 Hz: 20 fps (2560 x 1920), 25 fps (2048 x 1536), 25 fps (1920 x 1080), 25 fps (1280 x 720)
Sub Stream	60 Hz: 30 fps (352 x 240, 640 x 480) 50Hz: 25 fps (352 x 288, 640 x 480)
Others	Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage	Supports MicroSD / SDHC / SDXC card (128 GB), local storage and NAS (NFS,SMB / CIFS), ANR
Alarm Trigger	Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error, alarm input, alarm output
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 x RJ45 10/100 Mbps self-adaptive Ethernet port
Reset	Supported
General
Operating Conditions	-22° to 140° F (-30° to 60° C) Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 10%, PoE (802.3 af)
Power Consumption	Max. 5.5 W (Max. 7.5 W with ICR on)
IR Range	Approx. 100 ft (30 meters)
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ 5 .35” × 5.73”(Φ 135.8 × 145.5 mm)
Weight	2.34 lbs (1,060 g)
