Platinum V Advanced Level 8 Channel HD-TVI DVR - Compact Case Previous Platinum V Advanced Level 8 Channel HD-TVI DVR - Compact Case

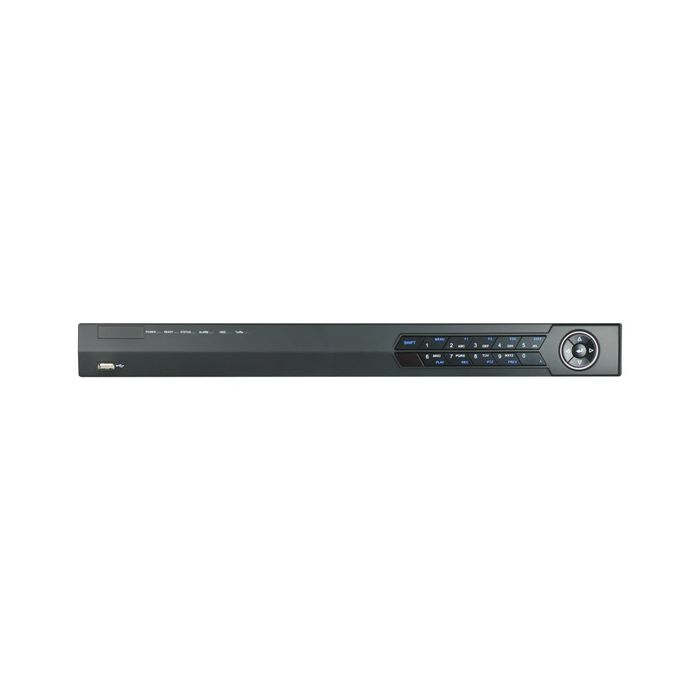

main product photo

Platinum 16-Channel NVR

Be the first to review this product
Call for Price
Out of stock
SKU
LTD7208-WH
Out of Stock
Show more Show less
Wish List Compare
  • H.264 video compression
  • WD1 (960 x 576) resolution real-time recording
  • HDMI and VGA output at up to 1920 x 1080p resolution
  • Dual-stream
  • Up to 8 channels of synchronous playback
  • NTP, SMTP, NFS, UPnP and iSCSI protocols
More Information
Specifications
A/V Input Video Input 8 channels, 960H
Video Input Interface BNC (1.0 Vp-p, 75Ω), PAL / NTSC sef -adapting
Audio Input 1 ch, RCA (2.0 Vp-p, 1kΩ)
Two-way audio input 1 ch, RCA (2.0 Vp-p, 1kΩ) (using the audio input)
A/V Output VGA Output 1 ch, Resolutions: 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
CVBS Output 1 ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
HDMI Output 1 ch, Resolutions: 1920 × 1080 / 60 Hz, 1920 × 1080 / 50 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording Resolutions WD1 / 4CIF / 2CIF / CIF / QCIF
Frame Rates 25 fps (P) / 30 fps (N)
Video Bit Rates 32 Kbps - 3,072 Kbps, or user defined (up to 3,072 Kbps)
Audio Output 1 ch BNC (Linear electrical level, 1 kΩ)
Audio Bit Rate 64 Kbps
Playback Resolutions WD1 / 4CIF / 2CIF / CIF / QCIF
Simultaneous Playback 8 channels
Hard Disk Drives Interface Type 2 x SATA Interfaces for 2 HDDs
Capacity Up to 4 TB capacity for each disk
External Interface USB Interface 1 x USB 2.0 Interface
Serial Interface 1 x RS-485 Interface
Alarm Inputs 8
Alarm Outputs 4
 General Power Supply 100 - 240 V AC, 47 - 63 Hz, 3 A
Consumption ≤ 15 W (without hard disk)
Working Temperature 14° to 121° F (-10° to 55° C)
Humidity 10% - 90%
Chassis 19-ich rack-mounted 1U chassis
Dimensions
(W x D x H)		 17.5 x 11.4 x 1.7 in.  (445 × 290 × 45 mm)
Weight ≤ 4.4 lb (2 kg) (without HDD)
SKU LTD7208-WH
Recorder Technology DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 8-Channel
LTD7208-WH Quick Start Guide (2.17 MB)
LTD7208-WH Datasheet (452.73 kB)
