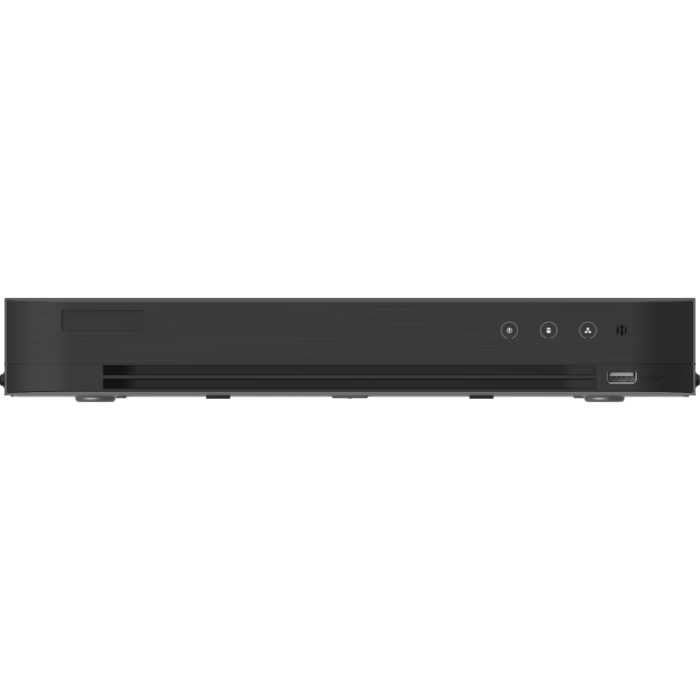

Platinum 4-Channel TVI DVR

Call for Price
In stock
SKU
LTD8304D-ET
In Stock
Smart Functions
  • Deep learning-based human and vehicle target classification with Motion Detection 2.0
  • Deep learning based VCA functionality
Compression and Recording
  • H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Recording at up to 3K / 5 MP Lite resolution
Storage and Playback
  • 1 x SATA interface (up to 10 TB capacity)
  • Smart search for efficient playback
Network & Ethernet Access
  • Compatible with major Wi-Fi dongle products in the market
  • LTS Connect & DDNS for easy network management
General
  • 4 ch + 1 IP (up to 6 MP) or 2 IP (up to 4 MP)
  • All channels support 4 MP lite @ 15 fps
  • 1 x HDD, 1U, MD 2.0
  • Supports 1 ch. Facial Recognition or 2 chs. advanced VCAs based on Deep Learning algorithm
  • Supports Two-Way HD-TVI Audio technology
  • Efficient H.265 Pro+ compression technology
  • Encoding ability up to 3K / 5 MP Lite @ 12 fps
  • 5 input signal options (HD-TVI / AHD / CVI / CVBS / IP) (self-adaptive)
  • Up to 6 network cameras can be connected
  • Supports Motion Detection technology on all channels
More Information
Specifications
  • Power Supply: 12 V DC, 1.5 A
  • Consumption: ≤ 18 W
  • Operating Temperature: 14° to 131° F (-10° to 55° C)
  • Operating Humidity: 10% to 90%
  • Dimensions (W × D × H): 1U; 12.4 × 9.5 × 1.8 inches (315 × 242 × 45 mm)
  • Weight: ≤ 2.6 lb (1.16 kg)
SKU LTD8304D-ET
Recorder Technology TVI DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 4-Channel
