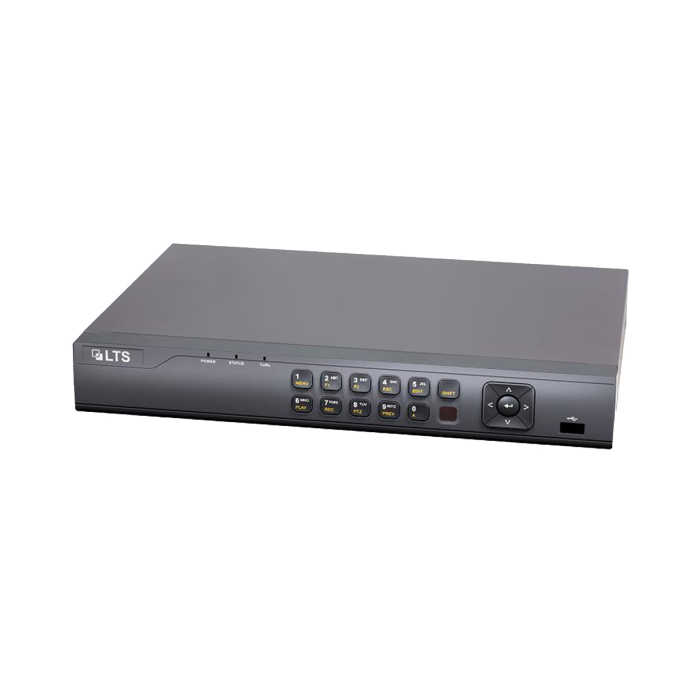

Platinum 4-Channel Advanced Level HD-TVI DVR

Call for Price
In stock
SKU
LTD8304M-ET
In Stock
  • H.265 Pro+ / H.265 Pro / H.265 video compression
  • HD-TVI / AHD / CVI / CVBS / IP video input
  • Up to 6 IP camera input channels (up to 6 MP)
  • Up to 10 TB capacity per HDD
More Information
Specifications
Motion Detection 2.0
Person / Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported

Perimeter Protection
Person / Vehicle Analysis Up to 2 channels
Face Detection
Face detection and capture 1 channel for human face capture (HD analog camera)
Recording
Video Compressions H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+


Encoding Resolutions
Main stream, 1080p lite mode disabled:
For 4 MP stream access: 4 MP lite @ 15 fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N)
For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF @ 15 fps
For 1080p stream access: 1080p / 720p @ 15 fps; VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)

1080p Lite mode enabled:
4 MP lite / 3 MP @ 15 fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)

Sub-stream: WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps to 6 Mbps
Dual stream Supported
Stream type Video, Video & Audio
Audio compression G.711 u
Audio bitrate 64 Kbps
Video and Audio
IP video input 1 channel (up to 5 ch)

Enhanced IP mode on: 2 channels (up to 6 ch), each up to 4 Mbps

Up to 6 MP resolution
Supports H.264  / H.264+ / H.265 / H.265+ IP cameras
Analog video input 4 channels
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 3, 4 MP; 1080p @ 30 / 25 fps, 720p @ 60 / 50 / 30 / 25 fps
3 MP signal input is only available for channel 1 on LTD8304M-ET, channels 1 or 2 on LTD8308M-ETC
AHD input 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps
HDCVI input 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps
CVBS input PAL / NTSC
CVBS output 1 ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI / VGA output 1 ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz,
HDMI / VGA simultaneous output
Audio input 1 ch, RCA (2.0 Vp-p, 1 KΩ)
4 ch via coaxial cable
Audio output 1 ch, RCA (Linear, 1 KΩ)
Two-way audio 1 ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4 channels
Network
Remote Connections 32
Network Protocols TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interfaces 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi Compatible with Wi-Fi networks using dongle through USB interface
Auxiliary interface
SATA 1 x SATA interface, up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
Alarm Channels (In/Out) N/A
General
Power supply 12 VDC, 1.5 A
Consumption (without HDD) ≤ 18 W
Operating Temperature 14° to 131° F  (-10° to 55° C)
Operating Humidity 10 to 90%
Dimensions
(W × D × H)
12.4 × 9.5 × 1.8" (315 × 242 × 45 mm)
Weight (without HDD) ≤ 1.16 kg (2.6 lb)
SKU LTD8304M-ET
Recorder Technology DVR
Recorder Case Compact Case
Recorder Series TurboHD
Recorder Channel 4-Channel
