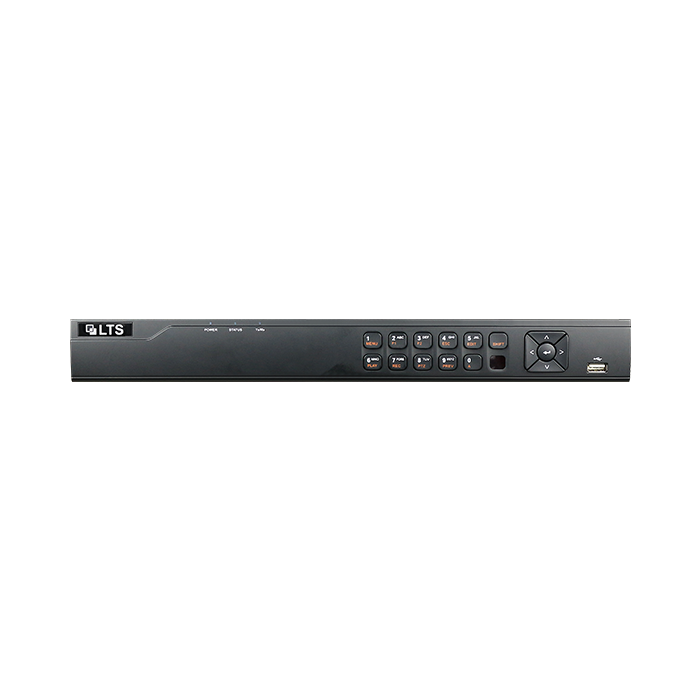

Platinum Professional Level 16-Channel HD-TVI DVR

Call for Price
In stock
SKU
LTD8316K-ET
In Stock
  • H.265 Pro+ / H.265 Pro / H.265 video compression
  • HD-TVI / AHD / CVI / CVBS / IP video input
  • Up to 24-ch IP camera inputs (up to 6 MP)
  • Max. 2,60+ ft (800 m) for 1080p and almost 4,00 ft (1200 m) for 720p HDTVI signal transmission
  • Up to 10 TB capacity per HDD
More Information
Specifications

Recording

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264



Encoding resolution

When 1080p lite mode is not enabled:

4  MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled:

5  MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF



Frame rate

Main stream:

When 1080p Lite mode not enabled:

For 4 MP stream access:

4  MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:

5  MP lite/4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps

(P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video bit rate

32 Kbps to 6 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio



IP video input

4-ch (up to 12-ch)

8-ch (up to 24-ch)

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras



Analog video input

8-ch

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection



HDTVI input

4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

*: The 3 MP signal input is only available for channel 1/2 of LTD8308K-ET, and for channel 1/2/3/4 of LTD8316K-ET.

AHD input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC



CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480



VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI output

1-ch, 1920 × 1080 / 60 Hz,
1280 ×1024 / 60 Hz,
1280 × 720 / 60 Hz,
1024 × 768 / 60 Hz

1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440) / 60 Hz,
1920 × 1080 / 60 Hz,
1280 × 1024 / 60 Hz,
1280 × 720 / 60 Hz,
1024 × 768 / 60 Hz

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

8-ch

16-ch

Network

Remote connection

64

128

Network protocol

TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,

HTTPS, ONVIF

Network interface

1 x RJ45 10M/100M self-adaptive Ethernet interface

1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary interface

SATA

2 x SATA interfaces

Capacity

Up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)

USB interface

2 × USB 2.0

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

Alarm in/out

N/A

General

Power supply

12 V DC

Consumption
(without HDD)

≤ 7.5 W

≤ 25 W

Operating Temperature

14° to 131° F  (-10° to 55° C)

Operating Humidity

10% to 90%

Dimensions (W × D × H)

15.0 × 12.6 × 1.9 in.  (380 × 320 × 48 mm)

Weight (without HDD)

≤ 3.9 lb  (1.78 kg)

≤ 4.4 lb  (2 kg)



SKU LTD8316K-ET
Recorder Technology TVI DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
