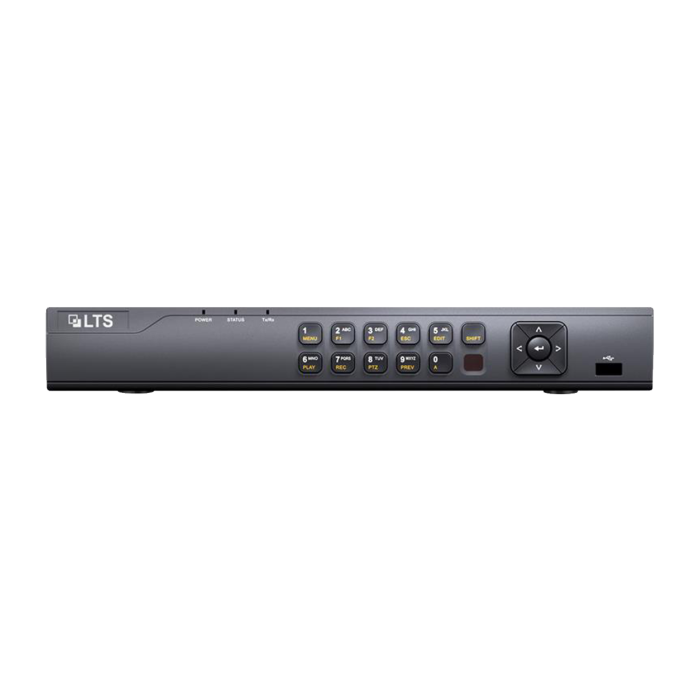

Turbo Smart HD-TVI DVR

Call for Price
In stock
SKU
LTD8504M-ST
In Stock
  • Deep learning-based motion detection 2.0 for all analog channels
  • Deep learning-based perimeter protection
  • H.264 / H.264+ / H.265 / H.265 / H.265 Pro / H.265 Pro+ video compression
  • HD-TVI / AHD / CVI / CVBS / IP video inputs
  • Audio via coaxial cable
  • Up to 8 x IP camera inputs (up to 8 MP)
  • Up to 10 TB capacity per HDD
More Information
Specifications
Motion Detection 2.0
Human / Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify humans and vehicles, and vastly reduce false alarms caused by objects like leaves and lights. Quick search by object or event type is supported;
Perimeter Protection
Human / Vehicle Analysis Up to 4 channels
Recording
Video Compression H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+
Encoding Resolution Main stream: 8 MP @ 8 fps / 5 MP @ 12 fps / 4 MP @ 15 fps
8 MP Lite @ 15 fps / 3 MP @ 18 fps 1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N)
(8 MP @ 8 fps is only available for channel 1. 8 MP Lite is only available for channel 2 to channel 4.)
Sub-stream: WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual Stream Supported
Stream Type Video, Video & Audio
Audio Compression G.711 u
Audio Bitrate 64 Kbps
Video and Audio
IP Video Inputs 2 ch (up to 6 ch)

Enhanced IP mode on: 4 ch (up to 8 ch), each up to 4 Mbps

Up to 8 MP resolution
Supports H.264 / H.264+ / H.265 / H.265+ IP cameras
Analog Video Inputs 4 ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HD-TVI input 3, 4, 5, 8 MP, 1080p @ 25 / 30, 720p @ 25 / 30 / 50 / 60 fps
AHD Input 4, 5 MP, 1080p @ 25 / 30 fps, 720p @ 25 / 30 fps
HD-CVI Input 4 MP, 1080p @ 25 / 30 fps, 720p @ 25 / 30 fps
CVBS Input PAL / NTSC
CVBS Output 1 ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA Output 1 ch, 1920 × 1080 / 60 Hz
1280 × 1024 / 60 Hz
1280 × 720 / 60 Hz
1024 × 768 / 60 Hz
HDMI / VGA simultaneous output
HDMI Output 1 ch, 2K (2560 × 1440) / 60 Hz
1920 × 1080 / 60 Hz
1280 × 1024 / 60 Hz
1280 × 720 / 60 Hz
1024 × 768 / 60 Hz
HDMI / VGA simultaneous output
Audio Input 1 ch, RCA (2.0 Vp-p, 1 KΩ)
4 ch via coaxial cable
Audio Output 1 ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1 ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Synchronous Playback 4 ch
Network
Remote Connections 32
Network Protocols TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA 1 x SATA interface
Capacity Up to 10 TB capacity for each disk
Serial  RS-485 (half-duplex)
USB  Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0
Alarm Channels (in/out) N/A
General
Power Supply 12 VDC, 1.5 A
Consumption (without HDD) ≤ 10 W
Operating Temperature 14° to 131° F  (-10° to 55° C)
Operating Humidity 10 to 90%
Dimensions
(W × D × H)
12.4 × 9.5 × 1.8"  (315 × 242 × 45 mm)
Weight
(without HDD)
≤ 2.6 lb (1.16 kg)
SKU LTD8504M-ST
Recorder Technology DVR
Recorder Case Compact Case
Recorder Series TurboHD
Recorder Channel 4-Channel
