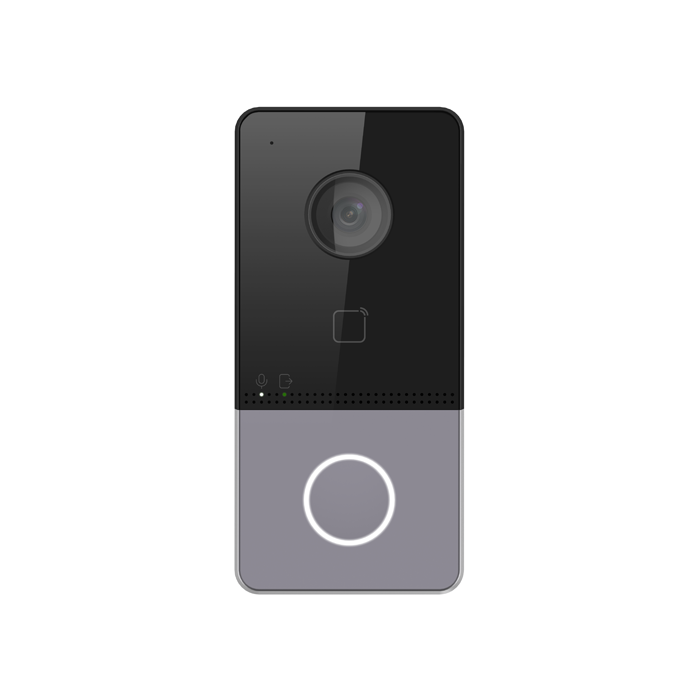

Video Intercom Door Station

In stock

SKU

LTH-302M-WIFI

Out of Stock

Standard PoE / 12 V DC Door Station

Show more Show less

More Information

Specifications

System Parameters
Operating System	Embedded Linux
CPU	Embedded MCU
Flash	32 M, 16 M
RAM	256 M
Video Parameters
Camera	2 MP HD camera
Night Vision	Low illumination IR Range: 10 ft (3 m)
BLC	Supported
DNR	Supported
WDR	True WDR
Field of View	Horizontal: 129°; Vertical: 75°
Video Compression Standard	H.264
Stream	Main stream: 1080p @ 30 fps, 720p @ 25 fps Sub stream: D1 @ 25 fps
Resolution	Main stream: 1920 × 1080, 720p Sub stream: 704 × 576
Motion Detection	Supported
Anti-Flicker Frequency	50 Hz, 60 Hz
Audio Parameters
Audio Intercom	Two-way audio communication
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Audio Quality	Noise suppression and echo cancellation
Network Parameters
Wired Network	10/100 Mbps Ethernet
Network Protocol	TCP/IP, RSTP
Access Control Parameters
Reading Frequency	13.56 MHz
Card Type	MIFARE card
User Capacity	2,000
Interfaces
RS-485	1
Wi-Fi	2.4 GHz Wi-Fi
Network	1
Alarm Input	4
Power Interface	1
Exit Button	1
Tamper Switch	1
General
Protections	IP65
Indicators	2
Power Supply	IEEE802.3 af, standard PoE 12 V DC
Power Consumption	＜ 10 W
Operating Temperature	-40° to 131° F (-40° to 55° C)
Operating Humidity	10% to 95%
Installation	Surface mount
Weight	0.58 lb (265 g)
Dimensions	5.4 x 2.6 x 1.1” (138 x 65 x 27 mm)

SKU

LTH-302M-WIFI
