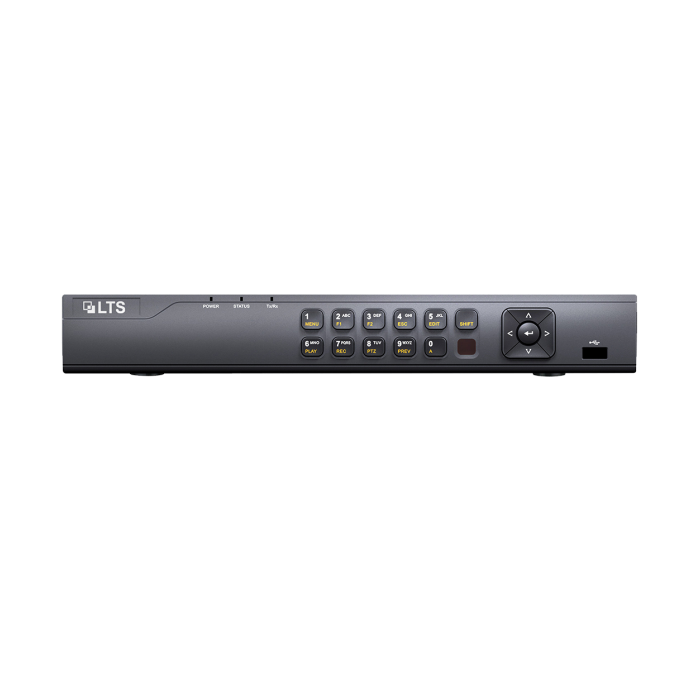

main product photo

Platinum 4-Channel Professional Level NVR

Be the first to review this product
Call for Price
In stock
SKU
LTN8704Q-P4N
In Stock
Platinum NVR with up to 4 channels for IP camera inputs, H.265+ video compression, up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity, up to 40 Mbps incoming bandwidth
  • Up to 4 channels for IP camera inputs
  • H.264 / H.264+ / H.265 / H.265+ video formats
  • Up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth
Wish List Compare
  • Up to 4 channels for IP camera inputs
  • H.264 / H.264+ / H.265 / H.265+ video formats
  • Up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth
More Information
Specifications
Video and Audio
IP Video Input 4 channels
Up to 8 MP resolution
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1 ch, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz
VGA Output 1 ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz
Video Output Mode HDMI / VGA simultaneous output
CVBS Output N/A
Audio Output 1 ch, RCA (Linear, 1 KΩ)
Two-way Audio Input 1 ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Formats H.264 / H.264+ / H.265 / H.265+
Recording Resolutions 3, 4, 5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback 4 ch
Capability 1 ch @ 8 MP (30 fps) / 5 ch @ 1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711 ulaw / G.711 alaw / G.722 / G.726
Network
Remote connections 16
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 4 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 50 W
Supported Standards IEEE 802.3 af / at
Auxiliary Interface
SATA 1 x SATA interface
Capacity Up to 8 TB capacity for each disk
USB Interface Front panel: 1 x USB 2.0; rear panel: 1 x USB 2.0
General
Power Supply 48 VDC, 1.35 A
Consumption (without HDD; PoE off) ≤ 10 W
Operating Temperature 14° to 131° F (-10° to 55° C)
Operating Humidity 10% to 90%
Dimensions (W × D × H) 12.4 × 9.4 × 1.9" (320 × 240 × 48 mm)
Weight (without HDD) ≤ 2.2 lb (1 kg)
SKU LTN8704Q-P4N
Recorder Technology IP / NVR
Recorder Case mini 1U
Recorder Series Platinum Series
Recorder Channel 4-Channel
Quick Start Guide (656.63 kB)
User Manual (5.79 MB)
LTN8704Q-P4N Spec sheet (651.67 kB)
