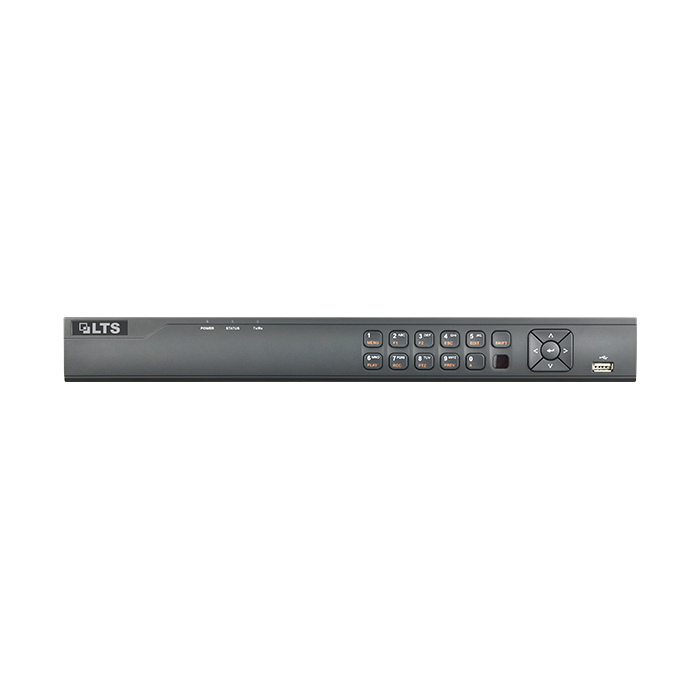

main product photo

Platinum 16-Channel Advanced Level Hybrid NVR

Be the first to review this product
Call for Price
In stock
SKU
LTN8716K-HT
Out of Stock
Show more Show less
Wish List Compare
  • 16 Channel Hybrid Network Video Recorder
  • Support 4K/8MP HD-TVI 4.0 Cameras
  • Support 8MP/4K(3840x2160) IP Cameras
  • HDMI Video Output
  • H.265/H.265+/H.264
  • Support 16CH HD-TVI and 16CH IP Cameras

More Information
Specifications
Video/Audio Input
Video/Audio Input H.265+/H.265/H.264 Zip+/H.264
Video Input 16CH
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition
Supported HDTVI input 8MP,5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720 p25
Supported AHD input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
IP Video Input 16CH, Up to 4K / 8 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
HDMI/ VGA output

VGA: 1 -c h , 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

HDMI: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz,
Encoding resolution 8MP/5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704×576, NTSC: 704×480
Frame rate Main stream: 8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30 fps (N)
Video bit rate 32 Kbps -10 Mbps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual- stream Support
Stream type Video, Video & Audio
Synchronous playback 16ch
Network
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA 2 SATA
Capacity Up to 8TB capacity for each disk
External Interface
Network Interface 1, RJ45 10M / 100M self-adaptive Ethernet interface
Serial Interface 1; RS-485 serial interface, half-duplex
USB Port Fr ont panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/4
General
Power Supply DC 12V
Consumption ≤ 25W
Working Temperature -10 °C ~ +55 °C(14°F - 131°F)
Working Humidity 10% - 90%
Chassis 1U chassis
Dimension 380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight ≤2Kg (4.4lb)
SKU LTN8716K-HT
Recorder Technology Hybrid NVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
