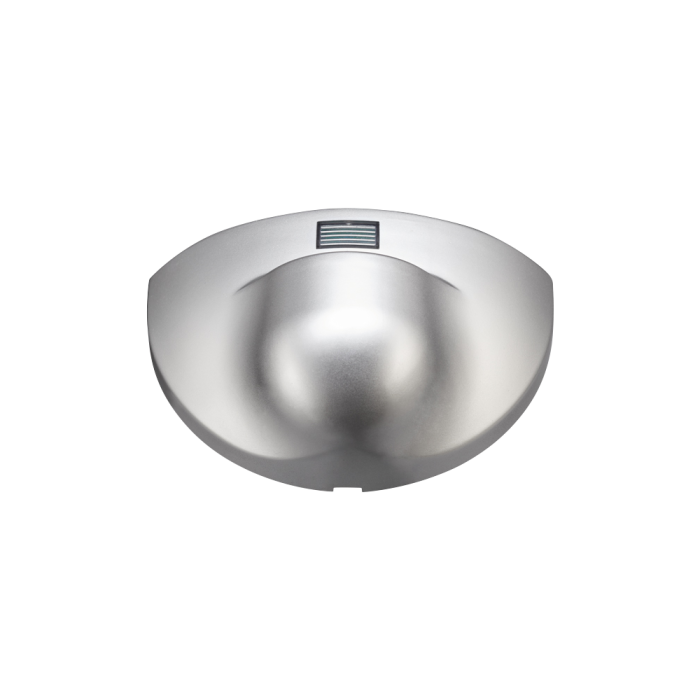

LTS RTE Motion Sensor - Silver

Product Parameter

Parameter Description

Size

120mm(W)×80mm(H)×50mm(D)

Power Voltage

12V to 30V AC+/-10%(50Hz to 60 Hz); 12V to 36V DC

Anti-interference performance

R&TTE 1995/5/EC,EMC 89/366/EEC

Power

＜2W(VA)

Maximum voltage

42AC-60V DC

Maximum Current

1A

Maximum switching power

30W(DC)/60VA(AC)

Retention time

0.5S

Protection class

IP54

Sheating material

ABS plastic

Color

Silver

Detection range

8m*4m(Installation Height 2.2M)

Min detection speed

5cm/s

Frequency

24.125GHz

Installation angle

0-90 degree(lengthways)-30 to +30(lateral)

Installation height

4M

Guide line

2.5m

Detection Mode

Motion

Working temperature

-20℃ to +55℃

Transmitting power

＜20dBm EIRP

Launch frequency density

＜5mW/cm2
